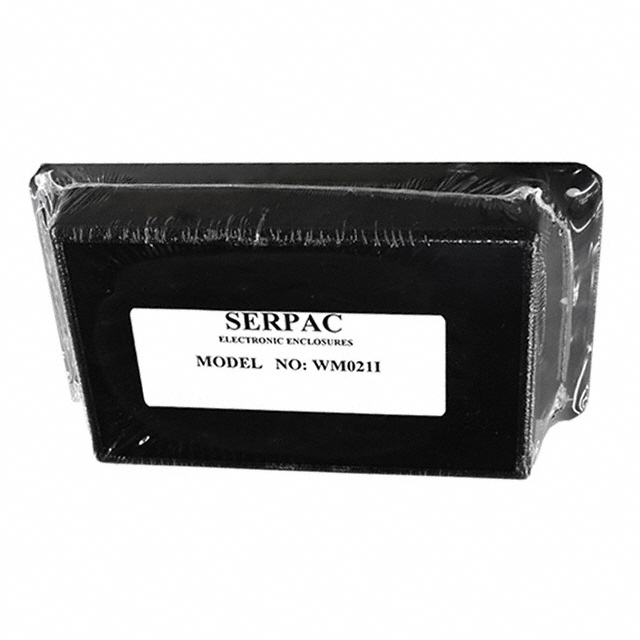

WM021I,BK

Active

Serpac

BOX ABS BLACK 4.1"L X 2.6"W

Deep-Dive with AI

Search across all available documentation for this part.

WM021I,BK

Active

Serpac

BOX ABS BLACK 4.1"L X 2.6"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM021I,BK

Area (L x W)	10.7 in²
Area (L x W)	69 cm²
Color	Black
Container Type	Box
Design	Cover Included
Features	PCB Supports, Wall Mount, Mounting Flange
Height [z]	27.94 mm
Height [z]	1.1 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	104.14 mm
Size / Dimension [x]	4.1 "
Size / Dimension [y]	2.6 "
Size / Dimension [y]	66.04 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	65.77 g
Weight	0.145 lb

WM021 Series

Part	Container Type	Color	Weight	Weight	Design	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height [z]	Height [z]	Material	Thickness	Thickness	Material Flammability Rating	Area (L x W)	Area (L x W)	Ratings
Serpac WM021R,BK	Box	Black	65.77 g	0.145 lb	Cover Included	Front Access Mounting Flange PCB Supports Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM021RI,GY	Box	Gray	65.77 g	0.145 lb	Cover Included	Front Access Mounting Flange PCB Supports Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM021RI,AL	Box	Almond	65.77 g	0.145 lb	Cover Included	Front Access Mounting Flange PCB Supports Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM021,BK	Box	Black	65.77 g	0.145 lb	Cover Included	Mounting Flange PCB Supports Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM021I,BK	Box	Black	65.77 g	0.145 lb	Cover Included	Mounting Flange PCB Supports Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM021I,AL	Box	Almond	65.77 g	0.145 lb	Cover Included	Mounting Flange PCB Supports Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM021,AL	Box	Almond	65.77 g	0.145 lb	Cover Included	Mounting Flange PCB Supports Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM021,GY	Box	Gray	65.77 g	0.145 lb	Cover Included	Mounting Flange PCB Supports Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM021RI,BK	Box	Black	65.77 g	0.145 lb	Cover Included	Front Access Mounting Flange PCB Supports Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM021R,AL	Box	Almond	65.77 g	0.145 lb	Cover Included	Front Access Mounting Flange PCB Supports Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40 NEMA 1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.82
		10	$ 4.20
		25	$ 3.82
		50	$ 3.29
		100	$ 2.90
		250	$ 2.69

Description

General part information

WM021 Series

Box Plastic, ABS Black Cover Included 4.100" L x 2.600" W (104.14mm x 66.04mm) X 1.100" (27.94mm)

Documents

Technical documentation and resources

No documents available
