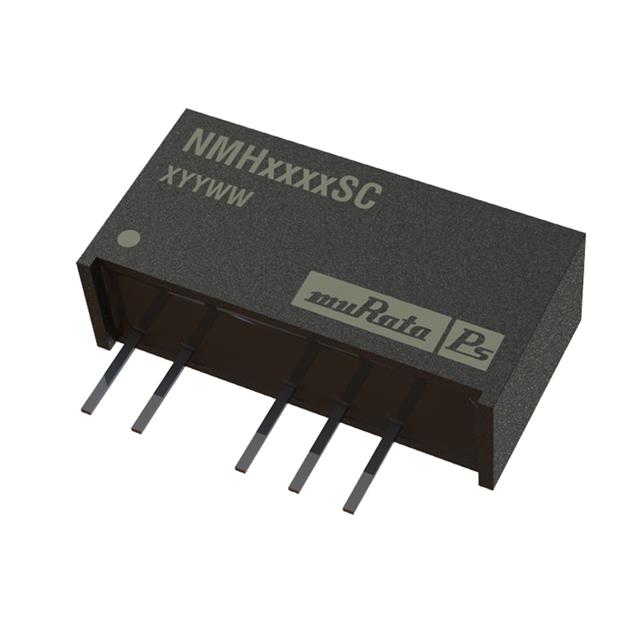

NMH1209SC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 2W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Voltage - Output 2	Mounting Type	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Applications	Number of Outputs	Package / Case	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Current - Output (Max)
Murata Power Solutions Inc. NMH1215DC	Isolated Module	-15 V	Through Hole	13.2 V	0.3 "	0.39 "	7.6 mm	19.6 mm	9.9 mm	0.77 in	2 W	ITE (Commercial)	2	14-DIP Module 6 Leads	15 V	10.8 V	1000 V	67 mA	67 mA	84 %	85 °C	-40 °C
Murata Power Solutions Inc. NMH1205SC	Isolated Module	-5 V	Through Hole	13.2 V	0.4 "	0.3 "	10.2 mm	19.6 mm	7.6 mm	0.77 in	2 W	ITE (Commercial)	2	7-SIP Module 5 Leads	5 V	10.8 V	1000 V			80 %	85 °C	-40 °C
Murata Power Solutions Inc. NMH1209SC	Isolated Module	-9 V	Through Hole	13.2 V	0.4 "	0.3 "	10.2 mm	19.6 mm	7.6 mm	0.77 in	2 W	ITE (Commercial)	2	7-SIP Module 5 Leads	9 V	10.8 V	1000 V			83 %	85 °C	-40 °C	111 mA	111 mA
Murata Power Solutions Inc. NMH1212DC	Isolated Module	-12 V	Through Hole	13.2 V	0.3 "	0.39 "	7.6 mm	19.6 mm	9.9 mm	0.77 in	2 W	ITE (Commercial)	2	14-DIP Module 6 Leads	12 V	10.8 V	1000 V	83 mA		84 %	85 °C	-40 °C			83 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 9V -9V 111mA, 111mA 10.8V - 13.2V Input
