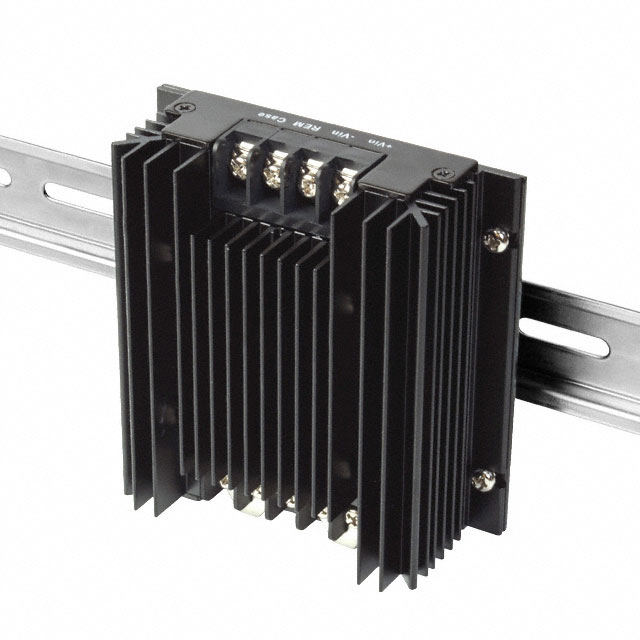

VHK200W-Q24-S12-DIN

Active

CUI Inc.

DC/DC DIN RAIL SUPPLY 12V 200W

Deep-Dive with AI

DocumentsPower Supply Safety Standards, Agencies, and Marks

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VHK200W-Q24-S12-DIN

Approval Agency	CE
Current - Output (Max) [Max]	16.7 A
DC Voltage - Input (Max) [Max]	36 V
DC Voltage - Input (Min) [Min]	10 V
Efficiency	84 %
Input Type	DC
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	200 W
Size / Dimension [x]	4.23 "
Size / Dimension [x]	107.4 mm
Size / Dimension [y]	101.9 mm
Size / Dimension [y]	4.01 in
Size / Dimension [z]	52.6 mm
Size / Dimension [z]	2.07 in
Voltage - Output 1	12 V

VHK200W-DIN Series

Isolated DC/DC Converters - DIN Rail Mount dc-dc isolated, 200 W, 18~75 Vdc input, 24 Vdc, 8.3 A, single regulated output, DIN-RAIL

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	DC Voltage - Input (Max) [Max]	Efficiency	Input Type	Approval Agency	Current - Output (Max) [Max]	Voltage - Output 1	DC Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs	Type	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]
CUI Inc. VHK200W-Q24-S24-DIN	85 °C	-40 °C	200 W	36 V	84 %	DC	CE	8.3 A	24 V	10 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in	1
CUI Inc. VHK200W-Q48-S48-DIN	85 °C	-40 °C	200 W	75 V	88 %	DC	CE	4.2 A	48 V	18 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in	1
CUI Inc. VHK200W-Q24-S15-DIN	85 °C	-40 °C	200 W	36 V	84 %	DC	CE	13.3 A	15 V	10 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in	1
CUI Inc. VHK200W-Q24-S28	100 °C	-40 °C	200 W		87 %			7.14 A	28 V		4.23 "	101.9 mm	107.4 mm	4.01 in	38.1 mm	1.5 "	1	Enclosed	36 V	Chassis Mount	10 VDC
CUI Inc. VHK200W-Q24-S28-DIN	85 °C	-40 °C	200 W	36 V	87 %	DC	CE	7.14 A	28 V	10 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in	1
CUI Inc. VHK200W-Q48-S15	100 °C	-40 °C	200 W		86 %			13.3 A	15 V		4.23 "	101.8 mm	107.5 mm	4.01 in	38 mm	1.5 "	1	Enclosed	75 V	Chassis Mount	18 V
CUI Inc. VHK200W-Q24-S12	100 °C	-40 °C	200 W		84 %			16.7 A	12 V		4.23 "	101.8 mm	107.5 mm	4.01 in	38 mm	1.5 "	1	Enclosed	36 V	Chassis Mount	10 VDC
CUI Inc. VHK200W-Q48-S12	100 °C	-40 °C	200 W		86 %			16.7 A	12 V		4.23 "	101.8 mm	107.5 mm	4.01 in	38 mm	1.5 "	1	Enclosed	75 V	Chassis Mount	18 V
CUI Inc. VHK200W-Q24-S48	100 °C	-40 °C	200 W		87 %			4.2 A	48 V		4.23 "	101.8 mm	107.5 mm	4.01 in	38 mm	1.5 "	1	Enclosed	36 V	Chassis Mount	10 VDC
CUI Inc. VHK200W-Q24-S12-DIN	85 °C	-40 °C	200 W	36 V	84 %	DC	CE	16.7 A	12 V	10 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 321.01
		5	$ 309.03
		10	$ 303.99
		32	$ 295.72

Description

General part information

VHK200W-DIN Series

Isolated DC/DC Converters - DIN Rail Mount dc-dc isolated, 200 W, 18~75 Vdc input, 24 Vdc, 8.3 A, single regulated output, DIN-RAIL
