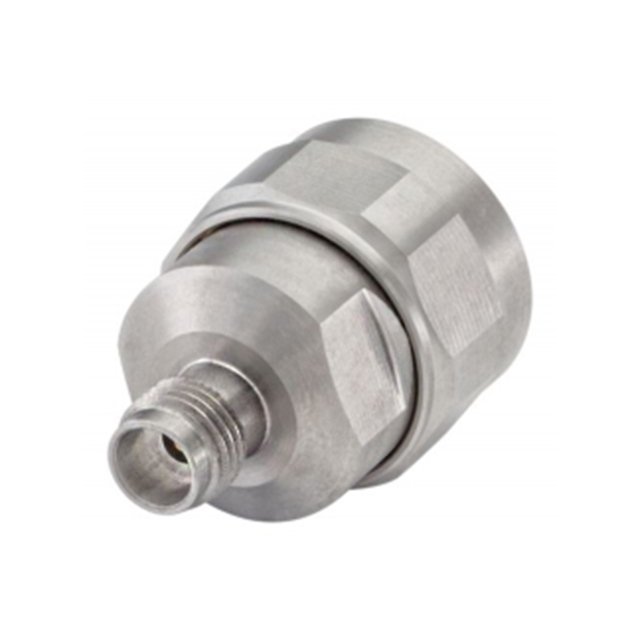

09K1P4-S00S3
ObsoleteRosenberger
PRECISION 2.40 ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
09K1P4-S00S3
ObsoleteRosenberger
PRECISION 2.40 ADAPTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09K1P4-S00S3 |
|---|---|
| Adapter Series | RPC-2.40, RJC-SL |
| Adapter Type | Plug to Jack |
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 2.4 mm |
| Convert To (Adapter End) | Male Pin, SL Plug |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Frequency - Max [Max] | 40 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.32 dB |
| Mating Cycles | 3000 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
09K1P4 Series
Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To SL Plug, Male Pin 50 Ohms
