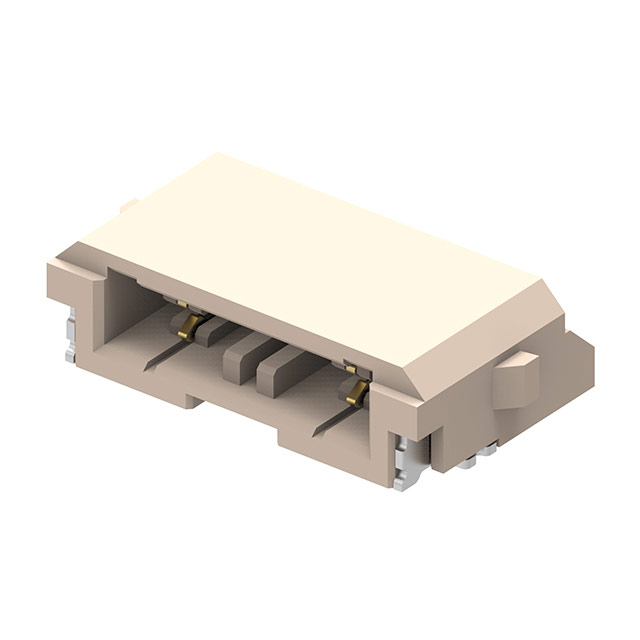

BJ300-02-Y-A
ObsoleteGCT
2W, 4.00MM PITCH SOCKET, SMT, HO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BJ300-02-Y-A
ObsoleteGCT
2W, 4.00MM PITCH SOCKET, SMT, HO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BJ300-02-Y-A |
|---|---|
| Connector Type | Socket |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 3 A |
| Fastening Type | Latch Holder |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 4 mm |
| Pitch [x] | 0.157 in |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BJ300 Series
SSL Connector 2 Position Socket Board to Board or Cable 0.157" (4.00mm) Solder
