1780202

Active

Phoenix Contact

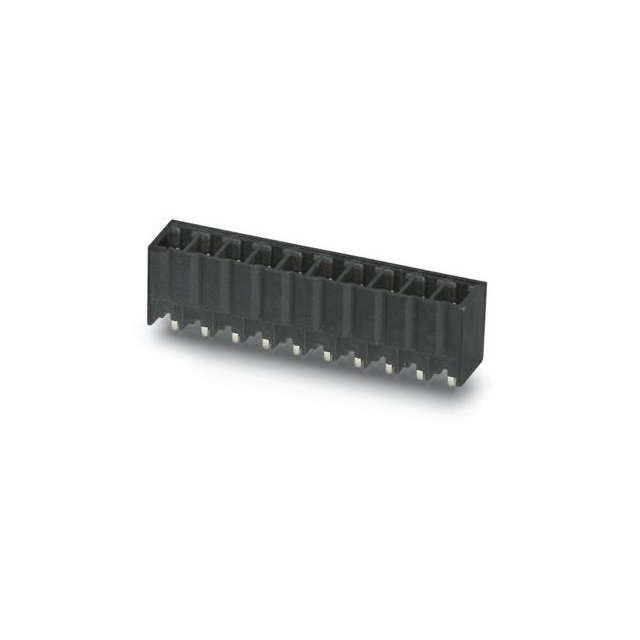

PLUGGABLE TERMINAL BLOCKS 2 POS 3.5MM PITCH THROUGH HOLE HEADER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1780202

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 2 POS 3.5MM PITCH THROUGH HOLE HEADER

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1780202

Color	Black
Contact Mating Finish	Tin
Contact Tail Length	0.055 in
Contact Tail Length	1.4 mm
Current - IEC	8 A
Current - UL	8 A
Header Orientation	Vertical
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.362 in
Insulation Height	9.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	2
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	250 V
Voltage - UL	300 V

MCV Series

Pluggable Terminal Blocks MCV 0,5/ 4-G-2,54 SMD R24

Part	Voltage - UL	Mounting Type	Current - IEC	Number of Levels	Contact Tail Length	Contact Tail Length	Color	Number of Positions	Current - UL	Header Orientation	Housing Material	Contact Mating Finish	Termination Style	Material Flammability Rating	Positions Per Level	Voltage - IEC	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Type	Features
Phoenix Contact 1843648	300 V	Through Hole	8 A	1	3.4 mm	0.134 in	Green	6	8 A	Vertical	Polybutylene Terephthalate (PBT)	Tin	Solder	UL94 V-0	6	250 V	3.5 mm	0.138 in	0.362 in	9.2 mm	Header Male Pins Shrouded (4 Side)
Phoenix Contact 1803455	300 V	Through Hole	8 A	1	3.4 mm	0.134 in	Green		8 A	Vertical	Polybutylene Terephthalate (PBT)	Tin	Solder	UL94 V-0	5	250 V	3.81 mm	0.15 in	0.362 in	9.2 mm	Header Male Pins Shrouded (4 Side)
Phoenix Contact 1950227	300 V	Through Hole	8 A	1	3.4 mm	0.134 in	Black	8	8 A	Vertical		Tin	Solder		8	160 V	3.81 mm	0.15 in	0.362 in	9.2 mm	Header Male Pins Shrouded (4 Side)
Phoenix Contact 1881587	125 V	Through Hole	4 A	1	3.5 mm	0.138 in	Green		4 A	Vertical	Polyamide (PA) Nylon	Tin	Solder	UL94 V-0	5	320 V	2.5 mm	0.098 in	0.398 in	10.11 mm	Header Male Pins Shrouded (4 Side)
Phoenix Contact 1942057		Through Hole	8 A	1			Black			Vertical		Tin	Solder		3	160 V	3.5 mm	0.138 in	0.362 in	9.2 mm	Header Male Pins Shrouded (4 Side)
Phoenix Contact 1821562	150 V	Surface Mount	6 A	1			Black	4	6 A	Vertical		Gold	Solder		4	160 V	2.54 mm	0.1 in			Header Male Pins Shrouded (4 Side)	Solder Retention
Phoenix Contact 1780202	300 V	Through Hole	8 A	1	1.4 mm	0.055 in	Black	2	8 A	Vertical	Liquid Crystal Polymer (LCP)	Tin	Solder	UL94 V-0	2	250 V	3.5 mm	0.138 in	0.362 in	9.2 mm	Header Male Pins Shrouded (4 Side)
Phoenix Contact 1731581	300 V	Through Hole	8 A	1	3.4 mm	0.134 in	Green	12	8 A	Vertical	Polybutylene Terephthalate (PBT)	Tin	Solder	UL94 V-0	12	250 V	3.5 mm	0.138 in	0.362 in	9.2 mm	Header Male Pins Shrouded (4 Side)	Locking Ramp
Phoenix Contact 1847686	300 V	Through Hole	8 A	1	3.4 mm	0.134 in	Green	9	8 A	Vertical	Polybutylene Terephthalate (PBT)	Tin	Solder	UL94 V-0	9	400 V	5.08 mm	0.2 in	0.362 in	9.2 mm	Header Male Pins Shrouded (4 Side)	Mating and Mounting Flange
Phoenix Contact 1821517	150 V	Through Hole	6 A	1	2 mm	0.079 in	Black	14	6 A	Vertical	Liquid Crystal Polymer (LCP)	Gold	Solder	UL94 V-0	14	160 V	2.54 mm	0.1 in	0.28 in	7.1 mm	Header Male Pins Shrouded (4 Side)	Solder Retention
