OSTOQ047051

Active

On Shore Technology Inc.

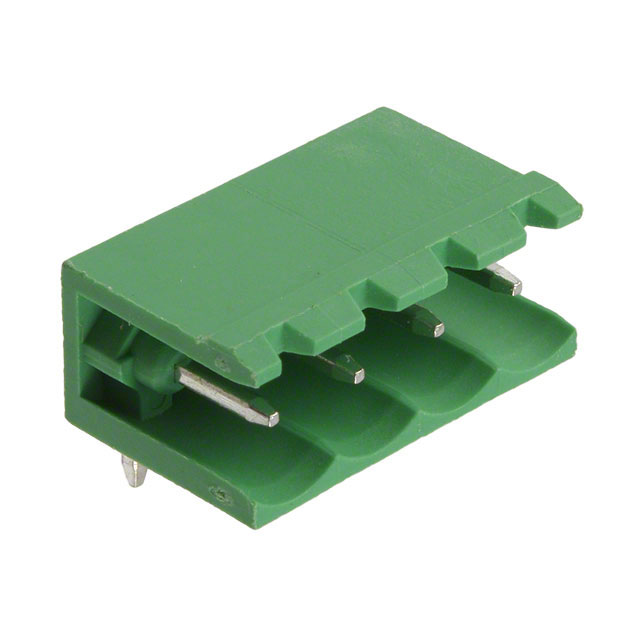

TERM BLOCK HDR 4POS 90DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTOQ047051

Active

On Shore Technology Inc.

TERM BLOCK HDR 4POS 90DEG 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTOQ047051

Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Mounting Type	Solder
Number of Levels	1
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	4
Type	Header, Male Pins, Shrouded (2 Side)
Voltage - UL	300 V

OSTOQ04 Series

Part	Material Flammability Rating	Number of Positions	Pitch [x]	Pitch [x]	Contact Tail Length	Contact Tail Length	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Insulation Height [custom]	Insulation Height [custom]	Contact Material	Contact Mating Finish	Type	Voltage - UL	Features	Number of Levels	Header Orientation	Positions Per Level	Mounting Type
On Shore Technology Inc. OSTOQ047551	UL94 V-0	4	5 mm	0.197 in	0.157 in	4 mm	-30 ░C	105 ░C	Thermoplastic	0.157 in	4 mm	Brass	Tin	Header Male Pins Shrouded (4 Side)	300 V	Mating Flange	1	90° Right Angle	4	Solder
On Shore Technology Inc. OSTOQ045451		4	5.08 mm	0.2 in	0.157 in	4 mm	-40 °C	115 °C	Thermoplastic	0.157 in	4 mm		Tin	Header Male Pins Shrouded (4 Side)	300 V		1	90° Right Angle	4	Solder
On Shore Technology Inc. OSTOQ047150		4	5 mm	0.197 in	0.157 in	4 mm	-30 ░C	105 ░C	Thermoplastic	0.157 in	4 mm	Brass	Tin	Header Male Pins Shrouded (4 Side)	300 V		1	Vertical	4	Solder
On Shore Technology Inc. OSTOQ04A151		4	7.5 mm	0.295 in	0.157 in	4 mm	-30 ░C	105 ░C	Thermoplastic	0.157 in	4 mm	Brass	Tin	Header Male Pins Shrouded (4 Side)	300 V		1	90° Right Angle	4	Solder
On Shore Technology Inc. OSTOQ040050		4	7.62 mm	0.3 in	0.157 in	4 mm	-30 ░C	105 ░C	Thermoplastic	0.157 in	4 mm	Brass	Tin	Header Male Pins Shrouded (2 Side)	300 V		1	Vertical	4	Solder
On Shore Technology Inc. OSTOQ047550	UL94 V-0	4	5 mm	0.197 in	0.157 in	4 mm	-30 ░C	105 ░C	Thermoplastic	0.157 in	4 mm	Brass	Tin	Header Male Pins Shrouded (4 Side)	300 V	Mating Flange	1	Vertical	4	Solder
On Shore Technology Inc. OSTOQ047051		4	5 mm	0.197 in	0.157 in	4 mm	-30 ░C	105 ░C	Thermoplastic	0.157 in	4 mm	Brass	Tin	Header Male Pins Shrouded (2 Side)	300 V		1	90° Right Angle	4	Solder
On Shore Technology Inc. OSTOQ040051		4	7.62 mm	0.3 in	0.157 in	4 mm	-30 ░C	105 ░C	Thermoplastic	0.157 in	4 mm	Brass	Tin	Header Male Pins Shrouded (2 Side)	300 V		1	90° Right Angle	4	Solder
On Shore Technology Inc. OSTOQ040550	UL94 V-0	4	7.62 mm	0.3 in	0.157 in	4 mm	-30 ░C	105 ░C	Thermoplastic	0.157 in	4 mm	Brass	Tin	Header Male Pins Shrouded (4 Side)	300 V	Mating Flange	1	Vertical	4	Solder
On Shore Technology Inc. OSTOQ045551	UL94 V-0	4	5.08 mm	0.2 in	0.157 in	4 mm	-30 ░C	105 ░C	Thermoplastic	0.157 in	4 mm	Brass	Tin	Header Male Pins Shrouded (4 Side)	300 V	Mating Flange	1	90° Right Angle	4	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.48
		10	$ 0.30
		25	$ 0.26
		50	$ 0.23
		100	$ 0.23
		250	$ 0.19
		500	$ 0.18
		1000	$ 0.17

Description

General part information

OSTOQ04 Series

4 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) 90°, Right Angle Solder

Documents

Technical documentation and resources
