TAB62A46501-080

Active

TE Connectivity Raychem Cable Protection

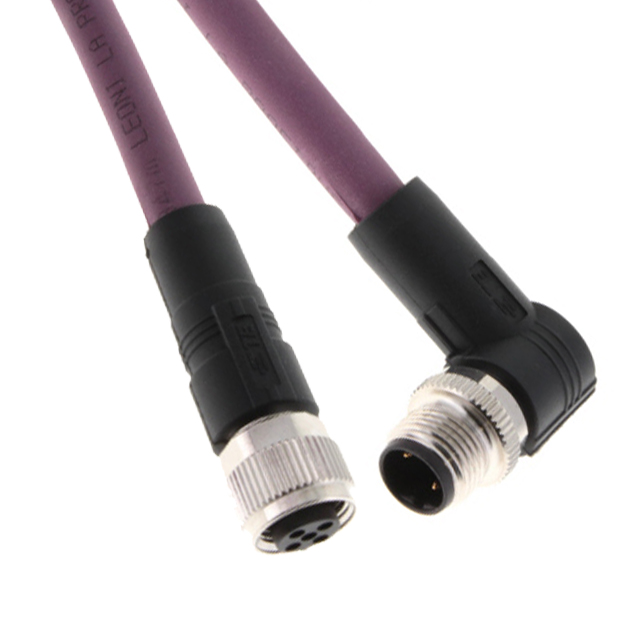

SENSOR CABLE, 2P, PROFIBUS, 90° M12 PLUG, M12 RECEPTACLE, 2 POSITIONS, 8 M, 26.2 FT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM8/M12 Cable Aassemblies Catalog M12 cable assembly qualification report +4

TAB62A46501-080

Active

TE Connectivity Raychem Cable Protection

SENSOR CABLE, 2P, PROFIBUS, 90° M12 PLUG, M12 RECEPTACLE, 2 POSITIONS, 8 M, 26.2 FT

Deep-Dive with AI

DocumentsM8/M12 Cable Aassemblies Catalog M12 cable assembly qualification report +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TAB62A46501-080

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	2
1st Connector Orientation	B
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	5
2nd Connector Number of Positions Loaded	2
2nd Connector Orientation	B
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Violet
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	26.2 '
Length	8 m
Shielding	Shielded
Usage	Industrial Environments

TAB62 Series

Part	Assembly Configuration	Cable Type	Length [x]	Length [x]	Shielding	1st Connector Number of Positions Loaded	1st Connector Number of Positions	Usage	1st Connector Mounting Type	1st Connector Orientation	1st Connector Gender	Color	2nd Connector Type	1st Connector Type	Cable Material	Ingress Protection	1st Connector Shell Size - Insert	2nd Connector Gender	2nd Connector Orientation	2nd Connector Mounting Type	2nd Connector Shell Size - Insert	2nd Connector Number of Positions Loaded	2nd Connector Number of Positions	1st Connector Number of Positions Loaded	2nd Connector Number of Positions Loaded	Length	Length
TE Connectivity Raychem Cable Protection TAB62346501-150	Standard	Round	15 m	49.2 ft	Shielded	2	5	Industrial Environments	Free Hanging (In-Line)	B	Female Sockets	Violet	Wire Leads	Plug	Polyurethane (PUR)	IP67 - Dust Tight Waterproof	M12
TE Connectivity Raychem Cable Protection TAB62546501-002	Standard	Round	1 m	3.28 ft	Shielded	2	5	Industrial Environments	Free Hanging (In-Line)	B	Male Pins	Violet	Plug	Receptacle	Polyurethane (PUR)	IP67 - Dust Tight Waterproof	M12	Female Sockets	B	Free Hanging (In-Line)	M12	2	5
TE Connectivity Raychem Cable Protection TAB62235501-007	Standard	Round			Shielded	2	5	Industrial Environments	Free Hanging (In-Line)	B	Male Pins	Violet	Wire Leads	Receptacle Right Angle	Polyurethane (PUR)	IP67 - Dust Tight Waterproof	M12
TE Connectivity Raychem Cable Protection TAB62235501-001	Standard	Round	500 mm	1.64 ft	Shielded		2	Industrial Environments	Free Hanging (In-Line)	B	Male Pins	Violet	Wire Leads	Receptacle Right Angle	Polyurethane (PUR)	IP68 IP69K	M12							All
TE Connectivity Raychem Cable Protection TAB62646501-001	Standard	Round	500 mm	1.64 ft	Shielded		2	Industrial Environments	Free Hanging (In-Line)	B	Male Pins	Violet	Plug Right Angle	Receptacle	Polyurethane (PUR)	IP68 IP69K	M12	Female Sockets	B	Free Hanging (In-Line)	M12			All	All
TE Connectivity Raychem Cable Protection TAB62535501-001	Standard	Round	500 mm	1.64 ft	Shielded		2	Industrial Environments	Free Hanging (In-Line)	B	Male Pins	Violet	Plug	Receptacle	Polyurethane (PUR)	IP68 - Dust Tight Waterproof; NEMA 6	M12	Female Sockets	B	Free Hanging (In-Line)	M12			All	All
TE Connectivity Raychem Cable Protection TAB62635501-020	Standard	Round	2 m	6.56 ft	Shielded	2	5	Industrial Environments	Free Hanging (In-Line)	B	Male Pins	Violet	Plug Right Angle	Receptacle	Polyurethane (PUR)	IP67 - Dust Tight Waterproof	M12	Female Sockets	B	Free Hanging (In-Line)	M12	2	5
TE Connectivity Raychem Cable Protection TAB62A46501-080	Standard	Round			Shielded	2	5	Industrial Environments	Free Hanging (In-Line)	B	Male Pins	Violet	Plug	Receptacle Right Angle	Polyurethane (PUR)	IP67 - Dust Tight Waterproof	M12	Female Sockets	B	Free Hanging (In-Line)	M12	2	5			26.2 '	8 m
TE Connectivity Raychem Cable Protection TAB62A35501-040	Standard	Round	4 m	13.12 ft	Shielded	2	5	Industrial Environments	Free Hanging (In-Line)	B	Male Pins	Violet	Plug	Receptacle Right Angle	Polyurethane (PUR)	IP67 - Dust Tight Waterproof	M12	Female Sockets	B	Free Hanging (In-Line)	M12	2	5
TE Connectivity Raychem Cable Protection TAB62146501-001	Standard	Round	500 mm	1.64 ft	Shielded		2		Free Hanging (In-Line)	B	Male Pins	Violet	Wire Leads	Receptacle	Polyurethane (PUR)		M12							All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 79.29
		10	$ 67.39
		25	$ 63.18
		50	$ 60.17
		100	$ 57.30
Newark	Each	10	$ 75.45
		25	$ 72.29
		50	$ 65.52
		100	$ 61.90
		250	$ 59.19
Sager	N/A	1	$ 69.51
		6	$ 66.44
		11	$ 64.54
		22	$ 62.75

Description

General part information

TAB62 Series

M12 Cable Assembly, 2 Position, 8 m, Industrial Fieldbus, PROFIBUS, B Code, M12 Plug End A, M12 Socket End B, Shielded, Double Ended, PA66+25GF

Documents

Technical documentation and resources

TAB62A46501-080

Deep-Dive with AI

TAB62A46501-080

Deep-Dive with AI

Technical Specifications

TAB62 Series

Pricing

Description

TAB62 Series

Documents

M8/M12 Cable Aassemblies Catalog

M12 cable assembly qualification report

ENG_CD_TAB62XXX501XXX_A1.pdf

M8/M12 Cable Assemblies Brochure

M12 connection application specification

Product Change Notice EN

TAB62 Series
