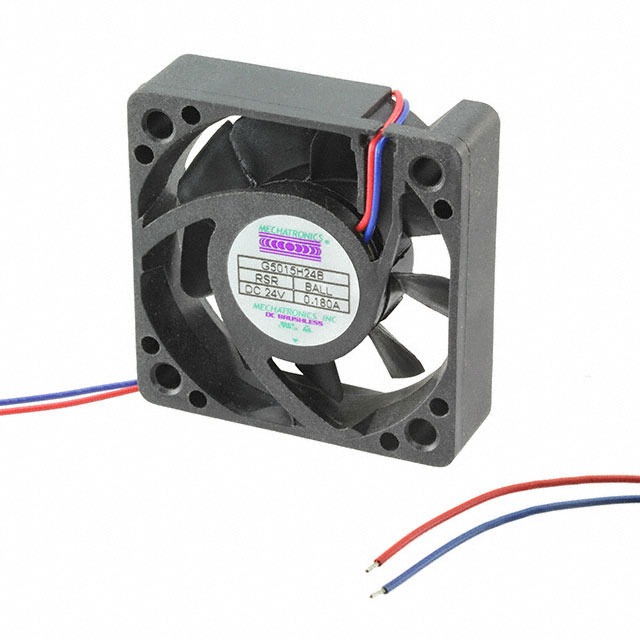

G5015H24B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 50X15MM 24VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN AXIAL 50X15MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	G5015H24B-RSR

Air Flow	13 CFM
Air Flow	0.364 mł/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.18 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	29 dB(A)
RPM	5500 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Static Pressure	42.3 Pa
Static Pressure	0.17 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	34.93 g
Weight	0.077 lb
Width [x]	15 mm

Part	Termination	Width [x]	Static Pressure	Static Pressure	Features	Material - Blade	Approval Agency	Voltage - Rated	RPM	Noise	Bearing Type	Fan Type	Weight	Weight	Size / Dimension [z]	Size / Dimension [x]	Current Rating (Amps)	Air Flow	Air Flow
Mechatronics Bearing Group G5015M12B-RSR	2 Wire Leads	15 mm	0.11 in H2O	27.4 Pa	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	12 VDC	4500 RPM	24 dB	Ball	Tubeaxial	34.93 g	0.077 lb	50 mm	50 mm	0.2 A
Mechatronics Bearing Group G5015H24B-RSR	2 Wire Leads	15 mm	0.17 in H2O	42.3 Pa	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	24 VDC	5500 RPM	29 dB(A)	Ball	Tubeaxial	34.93 g	0.077 lb	50 mm	50 mm	0.18 A	13 CFM	0.364 mł/min
Mechatronics Bearing Group G5015M24B-RSR	2 Wire Leads	15 mm	0.11 in H2O	27.4 Pa	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	24 VDC	4500 RPM	24 dB	Ball	Tubeaxial	34.93 g	0.077 lb	50 mm	50 mm	140 mA
Mechatronics Bearing Group G5015H05B-RSR	2 Wire Leads	15 mm	0.17 in H2O	42.3 Pa	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	5 V	5500 RPM	29 dB(A)	Ball	Tubeaxial	34.93 g	0.077 lb	50 mm	50 mm	400 mA	13 CFM	0.364 mł/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 50mm L x 50mm H Ball 13.0 CFM (0.364mł/min) 2 Wire Leads
