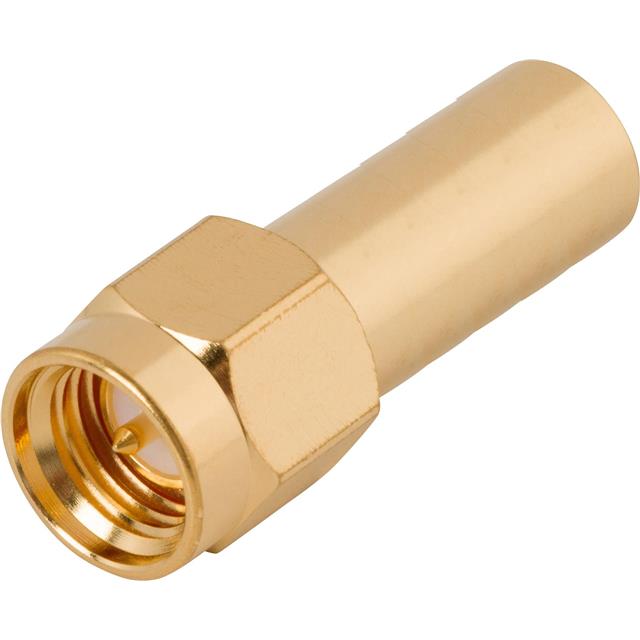

2903-6001

Active

Amphenol SV Microwave

CONN SMA PLUG STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMA PLUG STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	2903-6001

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-174, 179B, 316, 187A, 188A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Heat Shrink, 2 pcs - 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

Part	Frequency - Max [Max]	Contact Termination	Impedance	Body Finish	Shield Termination	Body Material	Number of Ports	Center Contact Material	Housing Color	Cable Group	Connector Type	Mounting Type	Mating Cycles	Connector Style	Includes	Dielectric Material	Center Contact Plating
Amphenol SV Microwave 2903-6001	12.4 GHz	Crimp	50 Ohms	Gold	Crimp	Stainless Steel	1	Brass	Gold	179B 187A 188A 316 RG-174	Male Pin Plug	Free Hanging (In-Line)	500	SMA	1 Heat Shrink 2 pcs - 1 Connector	Polytetrafluoroethylene (PTFE)	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
