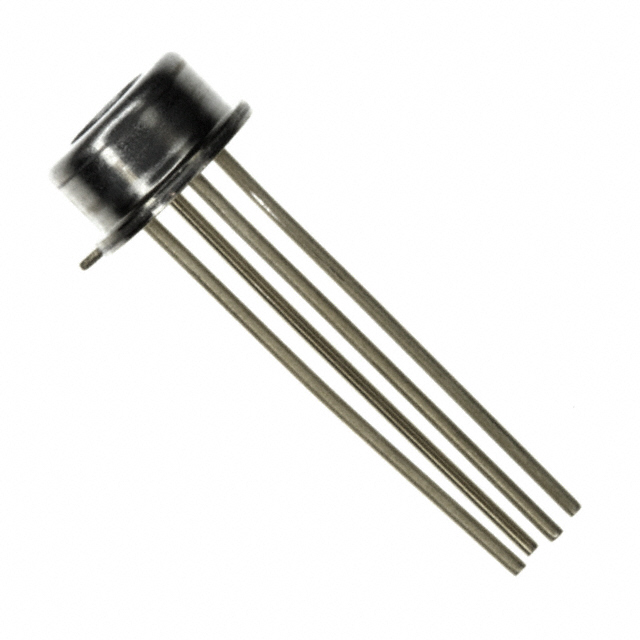

MLX90615SSG-DAG-000-SP

Obsolete

Melexis Technologies NV

SENSOR DGTL -40C-85C TO46-4

Search across all available documentation for this part.

Obsolete

Melexis Technologies NV

SENSOR DGTL -40C-85C TO46-4

Technical Specifications

Parameters and characteristics for this part

Specification	MLX90615SSG-DAG-000-SP

Accuracy - Highest (Lowest)	0.5 °C, 3 °C
Features	Programmable Resolution, Sleep Mode
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Output Type	PWM, SMBus
Package / Case	TO-46-4 Metal Can
Qualification	AEC-Q100
Resolution	15 b
Sensing Temperature - Local [Max]	85 °C
Sensing Temperature - Local [Min]	-40 °C
Sensing Temperature - Remote [Max]	115 °C
Sensing Temperature - Remote [Min]	-40 °C
Sensor Type	Infrared (IR), Digital
Supplier Device Package	TO-46-4
Test Condition [Max]	115 °C
Test Condition [Max]	60 °C
Test Condition [Min]	60 °C
Test Condition [Min]	0 °C
Voltage - Supply [Max]	3.4 V
Voltage - Supply [Min]	2.6 V

Part	Sensor Type	Supplier Device Package	Sensing Temperature - Local [Min]	Sensing Temperature - Local [Max]	Mounting Type	Package / Case	Test Condition [Min]	Test Condition [Max]	Test Condition [Max]	Qualification	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Temperature - Remote [Max]	Sensing Temperature - Remote [Min]	Accuracy - Highest (Lowest)	Output Type	Features	Grade	Resolution	Operating Temperature [Max]	Operating Temperature [Min]
Melexis Technologies NV MLX90615SSG-DAG-000-SP	Digital Infrared (IR)	TO-46-4	-40 °C	85 °C	Through Hole	TO-46-4 Metal Can	60 °C	115 °C	60 °C	AEC-Q100	3.4 V	2.6 V	115 °C	-40 °C	0.5 °C 3 °C	PWM SMBus	Programmable Resolution Sleep Mode	Automotive	15 b	85 °C	-20 C
Melexis Technologies NV MLX90615SSG-DAA-000-SP	Digital Infrared (IR)	TO-46-4	-40 °C	85 °C	Through Hole	TO-46-4 Metal Can	60 °C	115 °C	60 °C	AEC-Q100	3.4 V	2.6 V	115 °C	-40 °C	0.5 °C 3 °C	PWM SMBus	Programmable Resolution Sleep Mode	Automotive	15 b	85 °C	-20 C
Melexis Technologies NV MLX90615SSG-DAG-000-TU	Digital Infrared (IR)	TO-46-4	-40 °C	85 °C	Through Hole	TO-46-4 Metal Can	60 °C	115 °C	60 °C	AEC-Q100	3.6 V	2.6 V	115 °C	-40 °C	0.5 °C 3 °C	PWM SMBus	Programmable Resolution Sleep Mode	Automotive	15 b	85 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Temperature Sensor Digital, Infrared (IR) -40°C ~ 85°C 15 b TO-46-4
