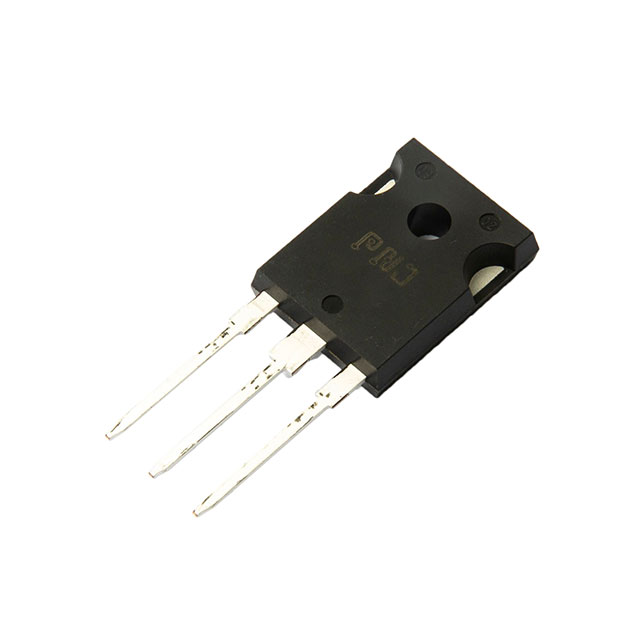

P3M06040K3
ActivePN Junction Semiconductor
SICFET N-CH 650V 68A TO247-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P3M06040K3
ActivePN Junction Semiconductor
SICFET N-CH 650V 68A TO247-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P3M06040K3 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 68 A |
| Drain to Source Voltage (Vdss) | 650 V |
| Drive Voltage (Max Rds On, Min Rds On) | 15 V |
| FET Type | N-Channel |
| Grade | Automotive |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | TO-247-3 |
| Power Dissipation (Max) [Max] | 254 W |
| Qualification | AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 50 mOhm |
| Supplier Device Package | TO-247-3L |
| Vgs (Max) [Max] | 20 V |
| Vgs (Max) [Min] | -8 V |
| Vgs(th) (Max) @ Id | 2.4 V, 7.5 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
P3M06040K3
N-Channel 650 V 68A 254W Through Hole TO-247-3L
Documents
Technical documentation and resources
