Q8F3BXXHG110E

Active

APEM

LED PMI FLUSH 110VAC GREEN

Search across all available documentation for this part.

Active

APEM

LED PMI FLUSH 110VAC GREEN

Technical Specifications

Parameters and characteristics for this part

Specification	Q8F3BXXHG110E

Current	6 mA
Ingress Protection	IP67
Lamp Color	Green
Lens Color	Green
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Transparency	Diffused
Millicandela Rating	300 mcd
Panel Cutout Dimensions [custom]	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm
Panel Cutout Shape	Round
Ratings	AC
Termination Style	Wire Leads - 7.87" (200.00mm)
Type	LED
Viewing Angle	100 °
Voltage	110 V

Part	Lens Color	Ingress Protection	Lens Size	Lens Size	Current	Panel Cutout Shape	Type	Termination Style	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Viewing Angle	Ratings	Voltage	Lens Transparency	Millicandela Rating	Lamp Color
APEM Q8F3BXXHG110E	Green	IP67	T-1 3/4	5 mm	6 mA	Round	LED	Wire Leads - 7.87" (200.00mm)	0.31 in	7.87 mm	100 °	AC	110 V	Diffused	300 mcd	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

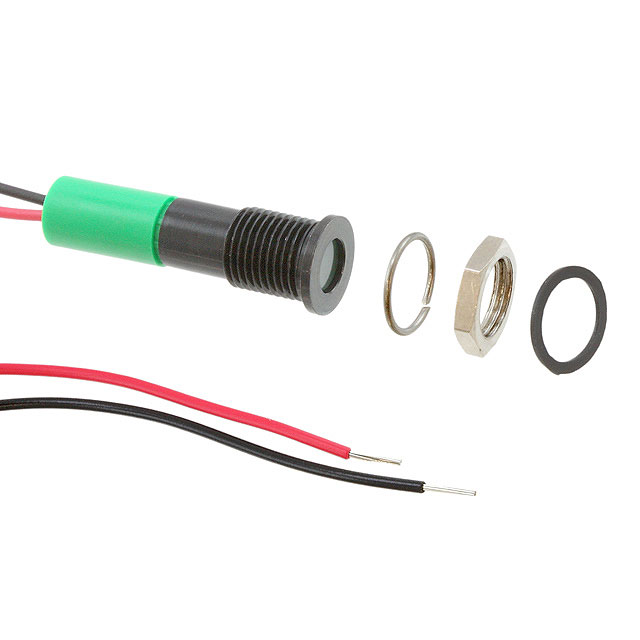

LED Panel Indicator Green Diffused 100° 110V 6mA Wire Leads - 7.87" (200.00mm)

Technical documentation and resources
