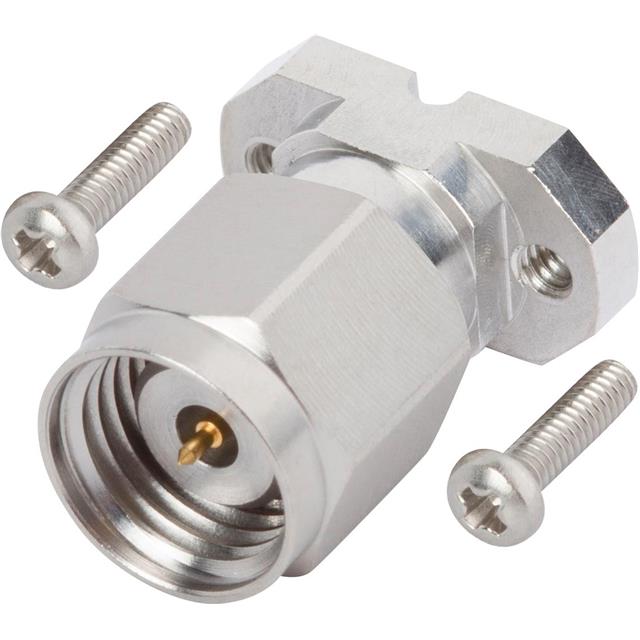

SF3311-60014-1S

Active

Amphenol SV Microwave

1.85MM MALE SOLDERLESS PCB COMPR

Search across all available documentation for this part.

Active

Amphenol SV Microwave

1.85MM MALE SOLDERLESS PCB COMPR

Technical Specifications

Parameters and characteristics for this part

Part	Center Contact Material	Mounting Feature	Housing Color	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Center Contact Plating	Frequency - Max [Max]	Features	Shield Termination	Connector Type	Connector Style	Impedance	Mating Cycles	Mounting Type
Amphenol SV Microwave SF3311-60014-2S	Beryllium Copper	Flange	Silver	Compression	-65 ░C	165 °C	Stainless Steel	Gold	50 GHz	Mounting Hardware	Screw	Male Pin Plug	1.85 mm	50 Ohms	500	Surface Mount
Amphenol SV Microwave SF3311-60014-1S	Beryllium Copper	Flange	Silver	Compression	-65 ░C	165 °C	Stainless Steel	Gold	50 GHz	Mounting Hardware	Screw	Male Pin Plug	1.85 mm	50 Ohms	500	Surface Mount
Amphenol SV Microwave SF3311-60014	Beryllium Copper	Flange	Silver	Compression	-65 ░C	165 °C	Stainless Steel	Gold	50 GHz		Screw	Male Pin Plug	1.85 mm	50 Ohms	500	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.85mm Connector Plug, Male Pin 50 Ohms Surface Mount Compression
