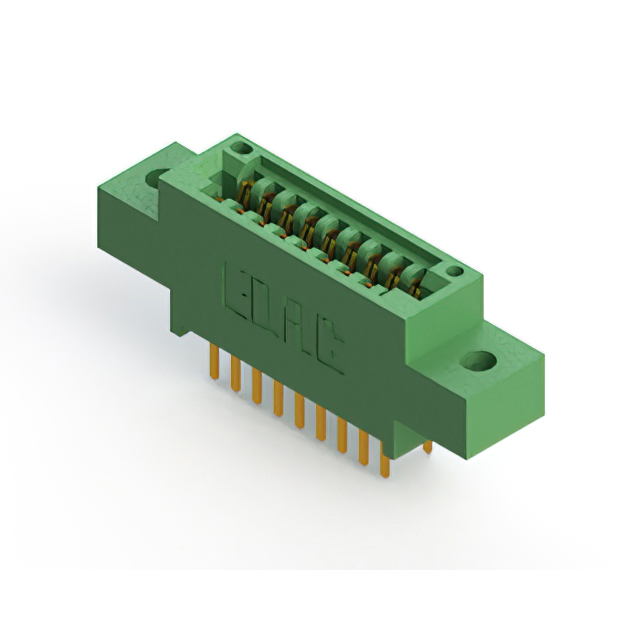

845-018-520-802
ActiveEDAC Inc.
2.54MM STRAIGHT 18P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-018-520-802 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-018 Series
...
| Part | Number of Positions/Bay/Row [custom] | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Termination | Flange Feature | Flange Feature | Color | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Mounting Type | Card Type | Number of Positions | Contact Material | Number of Rows | Material - Insulation | Read Out | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 9 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Solder | 3.25 mm | 0.128 in | Green | Female | 125 °C | -40 °C | 2 | Through Hole | Non Specified - Dual Edge | 18 | Copper Alloy | 2 | Diallyl Phthalate (DAP) | Dual | ||||
EDAC Inc. | 9 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Solder Eyelet(s) | 3.25 mm | 0.128 in | Green | Female | 125 °C | -40 °C | 2 | Through Hole | Non Specified - Dual Edge | 18 | Copper Alloy | 2 | Diallyl Phthalate (DAP) | Dual | Side Mount Opening Unthreaded | |||
EDAC Inc. | 9 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Solder Eyelet(s) | 3.25 mm | 0.128 in | Green | Female | 125 °C | -40 °C | 2 | Through Hole | Non Specified - Dual Edge | 18 | Copper Alloy | 2 | Diallyl Phthalate (DAP) | Dual | ||||
EDAC Inc. | 18 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Wire Wrap | Green | Female | 125 °C | -40 °C | 1 | Through Hole | Non Specified - Single Edge | 18 | Copper Alloy | 1 | Diallyl Phthalate (DAP) | Single | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 9 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Solder Eyelet(s) | Green | Female | 125 °C | -40 °C | 2 | Through Hole | Non Specified - Dual Edge | 18 | Copper Alloy | 2 | Diallyl Phthalate (DAP) | Dual | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 9 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Solder | Green | Female | 125 °C | -40 °C | 2 | Board Edge Straddle Mount | Non Specified - Dual Edge | 18 | Copper Alloy | 2 | Diallyl Phthalate (DAP) | Dual | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Card Extender | ||
EDAC Inc. | 9 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Solder | 3.25 mm | 0.128 in | Green | Female | 125 °C | -40 °C | 2 | Through Hole | Non Specified - Dual Edge | 18 | Copper Alloy | 2 | Diallyl Phthalate (DAP) | Dual | Side Mount Opening Unthreaded | |||
EDAC Inc. | 9 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Solder | Green | Female | 125 °C | -40 °C | 2 | Through Hole Right Angle | Non Specified - Dual Edge | 18 | Copper Alloy | 2 | Diallyl Phthalate (DAP) | Dual | Top Mount Opening Unthreaded | 3.96 mm | 0.156 in | |||
EDAC Inc. | 9 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Solder | Green | Female | 125 °C | -40 °C | 2 | Board Edge Straddle Mount | Non Specified - Dual Edge | 18 | Copper Alloy | 2 | Diallyl Phthalate (DAP) | Dual | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Card Extender | ||
EDAC Inc. | 18 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Solder | Green | Female | 125 °C | -40 °C | 1 | Through Hole Right Angle | Non Specified - Single Edge | 18 | Copper Alloy | 1 | Diallyl Phthalate (DAP) | Single | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-018 Series
18 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
