BT1.5M-M69

Active

Panduit Corp

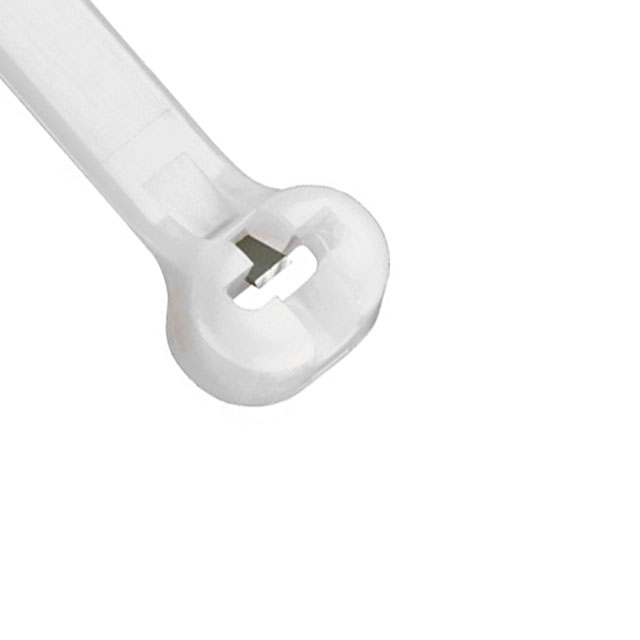

CABLE TIE, 160MM, POLYAMIDE 6.6, IVORY

Search across all available documentation for this part.

Active

Panduit Corp

CABLE TIE, 160MM, POLYAMIDE 6.6, IVORY

Technical Specifications

Parameters and characteristics for this part

Part	Length - Approximate [x]	Material	Wire/Cable Tie Type	Features	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Color	Width [x]	Width [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Tensile Strength	Tensile Strength	Mounting Type	Length - Approximate	Length - Actual	Length - Actual	Length - Actual
Panduit Corp BT1.5M-M69	6.25 in	Polyamide (PA66) Nylon 6/6	Locking Standard	Flame Retardant	160 mm	0.525 '	6.3 "	Ivory	0.095 in	2.41 mm	1.5 in	38.1 mm	18 lbs	8.16 kg	Free Hanging (In-Line)
Panduit Corp BT1.5M-C0	6 in	Polyamide (PA66) Nylon 6/6	Locking Standard	Weather Resistant	154.94 mm	0.508 ft	6.1 in	Black	0.095 in	2.41 mm	1.5 in	38.1 mm	18 lbs	8.16 kg	Free Hanging (In-Line)
Panduit Corp BT1.5M-C	6 in	Polyamide (PA66) Nylon 6/6	Locking Standard		154.94 mm	0.508 ft	6.1 in	Natural	0.095 in	2.41 mm	1.5 in	38.1 mm	18 lbs	8.16 kg	Free Hanging (In-Line)
Panduit Corp BT1.5M-XMR30		Polyamide (PA66) Nylon 6/6	Locking Standard	Heat Stabilized				Black	0.1 "	2.54 mm	1.31 in	33.27 mm	30 lbs	13.61 kg	Free Hanging (In-Line)	5.5 in	0.467 ft	142.24 mm	5.6 in
Panduit Corp BT1.5M-XMR	6.25 in	Polyamide (PA66) Nylon 6/6	Locking Standard		160 mm	0.525 '	6.3 "	Natural	0.1 "	2.54 mm	1.31 in	33.27 mm	30 lbs	13.61 kg	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Standard, Locking Ivory 1.50" (38.10mm) 0.095" (2.41mm) 18 lbs (8.16 kg)
