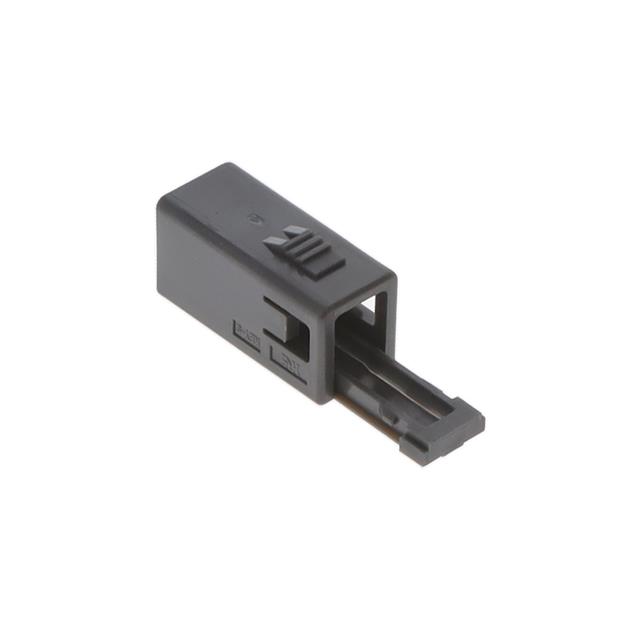

GT32FS-4DS-HU

Active

Hirose Electric USA, Inc.

CONN INLINE SOCKET HOUSING

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN INLINE SOCKET HOUSING

Technical Specifications

Parameters and characteristics for this part

Specification	GT32FS-4DS-HU

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	1.5 mm
Pitch [x]	0.059 in

Part	Mounting Type	Contact Termination	Number of Rows	Color	Contact Type	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Fastening Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	For Use With/Related Products	Accessory Type
Hirose Electric USA, Inc. GT32FS-4DS-HU	Free Hanging (In-Line)	Crimp	2	Gray	Female Socket	1.5 mm	0.059 in	Receptacle	4	Latch Lock	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C
Hirose Electric USA, Inc. GT32FS-4DS-5CF														GT32 Series	Backshell
Hirose Electric USA, Inc. GT32FS-4DP-SC									4					GT32 Series
Hirose Electric USA, Inc. GT32FS-4DS-SC									4						Cap (Cover) Protective

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle Gray 0.059" (1.50mm)
