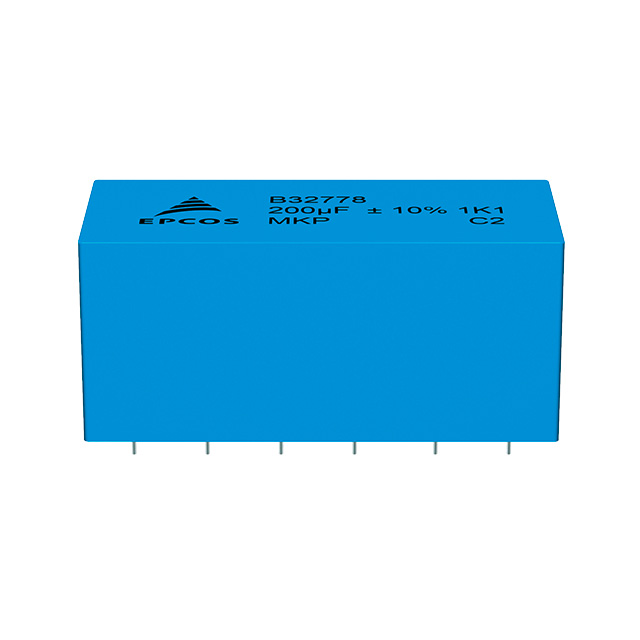

B32778J1127K000

Active

EPCOS - TDK Electronics

CAP FILM 120UF 10% 1.3KVDC 12DIP

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

CAP FILM 120UF 10% 1.3KVDC 12DIP

Technical Specifications

Parameters and characteristics for this part

Specification	B32778J1127K000

Applications	DC Link, DC Filtering
Capacitance	120 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	1.7 mOhm
Features	Long Life
Height - Seated (Max) [Max] [z]	2.283 in
Height - Seated (Max) [Max] [z]	58 mm
Lead Spacing	52.5 mm
Lead Spacing	2.067 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	12-DIP
Size / Dimension [x]	2.264 in
Size / Dimension [x]	57.5 mm
Size / Dimension [y]	130 mm
Size / Dimension [y]	5.118 "
Termination	PC Pins
Tolerance	10 %
Voltage Rating - DC	1.3 kV
Voltage Rating - DC	1300 V

Part	Voltage Rating - DC	Voltage Rating - DC	Features	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Applications	Tolerance	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance
EPCOS - TDK Electronics B32778J0207K000	1100 V	1.1 kV	Long Life	1.4 mOhms	52.5 mm	2.067 in	Metallized Polypropylene (PP)	2.283 in	58 mm	Through Hole	DC Filtering DC Link	10 %	PC Pins	2.264 in	130 mm	57.5 mm	5.118 "	12-DIP	-40 °C	105 ░C
EPCOS - TDK Electronics B32778J8277K000	800 V		Long Life	1.2 mOhms	52.5 mm	2.067 in	Metallized Polypropylene (PP)	2.283 in	58 mm	Through Hole	DC Filtering DC Link	10 %	PC Pins	2.264 in	130 mm	57.5 mm	5.118 "	12-DIP	-40 °C	105 ░C	270 µF
EPCOS - TDK Electronics B32778J4487K000	450 V		Long Life	0.9 mOhms	52.5 mm	2.067 in	Metallized Polypropylene (PP)	2.283 in	58 mm	Through Hole	DC Filtering DC Link	10 %	PC Pins	2.264 in	130 mm	57.5 mm	5.118 "	12-DIP	-40 °C	105 ░C	480 µF
EPCOS - TDK Electronics B32778J1127K000	1300 V	1.3 kV	Long Life	1.7 mOhm	52.5 mm	2.067 in	Metallized Polypropylene (PP)	2.283 in	58 mm	Through Hole	DC Filtering DC Link	10 %	PC Pins	2.264 in	130 mm	57.5 mm	5.118 "	12-DIP	-40 °C	105 ░C	120 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized 12-DIP
