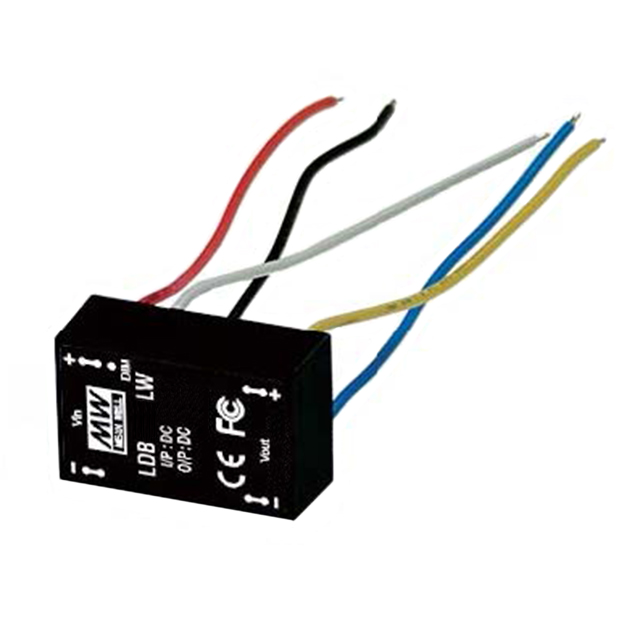

LDB-500LW
ActiveMEAN WELL USA Inc.
LED DRVR CC BCK-BST 2-32V 500MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LDB-500LW
ActiveMEAN WELL USA Inc.
LED DRVR CC BCK-BST 2-32V 500MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LDB-500LW |
|---|---|
| Approval Agency | CE |
| Current - Output (Max) [Max] | 500 mA |
| Dimming | PWM |
| Efficiency | 91 % |
| Features | Remote On/Off, SCP, OTP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | IP67 |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [z] | 0.48 in |
| Size / Dimension [z] | 12.2 mm |
| Termination Style | Wire Leads |
| Topology | Buck-Boost |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 30 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Output [Max] | 32 VDC |
| Voltage - Output [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 240 | $ 9.64 | |
Description
General part information
LDB-500 Series
500mA 2 ~ 32V Constant Current LED Driver Buck-Boost Topology 1 Output
