20IMX15-0503-8RG

Active

EOS Power India Private Ltd

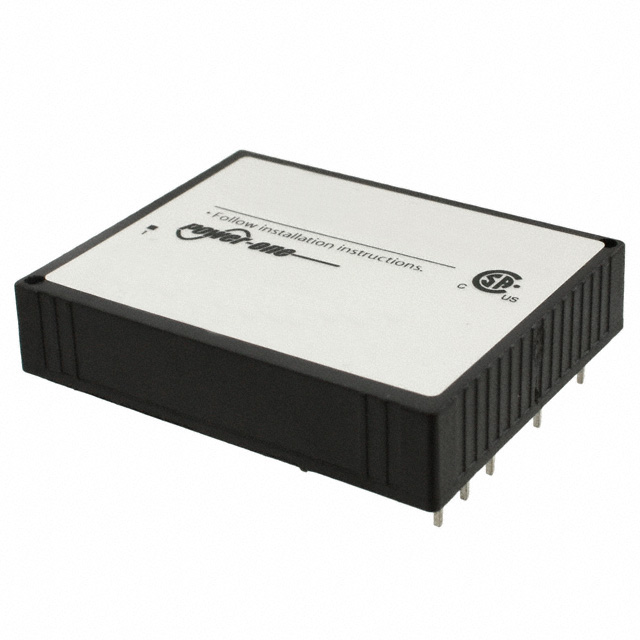

DC DC CONVERTER 5.1V 3.3V 15W

Deep-Dive with AI

Search across all available documentation for this part.

20IMX15-0503-8RG

Active

EOS Power India Private Ltd

DC DC CONVERTER 5.1V 3.3V 15W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20IMX15-0503-8RG

Applications	Railway, ITE (Commercial)
Current - Output (Max)	1.35 A
Current - Output (Max)	1.35 A
Efficiency	84 %
Features	OVP, UVLO, SCP, OCP, OTP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	15 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	40.6 mm
Size / Dimension [y]	1.6 "
Size / Dimension [z]	10.5 mm
Size / Dimension [z]	0.41 "
Type	Isolated Module, Conformal Coated
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	8.4 V
Voltage - Isolation	2.1 kV
Voltage - Output 1	5.1 V
Voltage - Output 2	3.3 V

20IMX15 Series

Part	Efficiency	Type	Voltage - Isolation	Power (Watts)	Current - Output (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Input (Max) [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Package / Case	Voltage - Input (Min) [Min]	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
EOS Power India Private Ltd 20IMX15-05-8RG-G	86 %	Conformal Coated Isolated Module	2.1 kV	18 W	3.5 A	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 °C	5.1 V	36 V	Through Hole	40.9 mm	50.8 mm	10.4 mm	0.41 "	1.61 in	50.8 mm	ITE (Commercial) Railway	17-DIP Module 9 Leads	8.4 V	1
EOS Power India Private Ltd 20IMX15-05-8RG	86 %	Conformal Coated Isolated Module	2.1 kV	15 W	3.5 A	OTP OVP SCP UVLO	85 °C	-40 °C	5.1 V	36 V	Through Hole				10.5 mm	40.6 mm	50.8 mm	ITE (Commercial) Railway		8.4 V	1	1.6 "	2 in	0.41 "
EOS Power India Private Ltd 20IMX15-03-8RG	84 %	Conformal Coated Isolated Module	2.1 kV	15 W	4.5 A	OTP OVP SCP UVLO	85 °C	-40 °C	3.3 V	36 V	Through Hole				10.5 mm	40.6 mm	50.8 mm	ITE (Commercial) Railway		8.4 V	1	1.6 "	2 in	0.41 "
EOS Power India Private Ltd 20IMX15-05-8R-G	86 %	Conformal Coated Isolated Module	2.1 kV	15 W	3.5 A	OTP OVP SCP UVLO	85 °C	-40 °C	5.1 V	36 V	Through Hole				10.5 mm	40.6 mm	50.8 mm	ITE (Commercial) Railway		8.4 V	1	1.6 "	2 in	0.41 "
EOS Power India Private Ltd 20IMX15-05-05-8	86 %	Conformal Coated Isolated Module	2.1 kV	15 W	1.3 A	OTP OVP SCP UVLO	85 °C	-40 °C	5 V	36 V	Through Hole				10.5 mm	40.6 mm	50.8 mm	ITE (Commercial) Railway		8.4 V	2	1.6 "	2 in	0.41 "	5 V
EOS Power India Private Ltd 20IMX15-0503-8RG	84 %	Conformal Coated Isolated Module	2.1 kV	15 W		OCP OTP OVP SCP UVLO	85 °C	-40 °C	5.1 V	36 V	Through Hole				10.5 mm	40.6 mm	50.8 mm	ITE (Commercial) Railway		8.4 V	2	1.6 "	2 in	0.41 "	3.3 V	1.35 A	1.35 A
EOS Power India Private Ltd 20IMX15-15-15-8	88 %	Conformal Coated Isolated Module	2.1 kV	15 W		OTP OVP SCP UVLO	85 °C	-40 °C	15 V	36 V	Through Hole				10.5 mm	40.6 mm	50.8 mm	ITE (Commercial) Railway		8.4 V	2	1.6 "	2 in	0.41 "	15 V		500 mA	500 mA
EOS Power India Private Ltd 20IMX15-05-05-8G	86 %	Conformal Coated Isolated Module	2.1 kV	15 W	1.3 A	OTP OVP SCP UVLO	85 °C	-40 °C	5 V	36 V	Through Hole				10.5 mm	40.6 mm	50.8 mm	ITE (Commercial) Railway		8.4 V	2	1.6 "	2 in	0.41 "	5 V
EOS Power India Private Ltd 20IMX15-12-12-8G	88 %	Conformal Coated Isolated Module	2.1 kV	15 W		OTP OVP SCP UVLO	85 °C	-40 °C	12 V	36 V	Through Hole				10.5 mm	40.6 mm	50.8 mm	ITE (Commercial) Railway		8.4 V	2	1.6 "	2 in	0.41 "	12 V		650 mA	650 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 135.74

Description

General part information

20IMX15 Series

Isolated Module, Conformal Coated DC DC Converter 2 Output 5.1V 3.3V 1.35A, 1.35A 8.4V - 36V Input

Documents

Technical documentation and resources

No documents available
