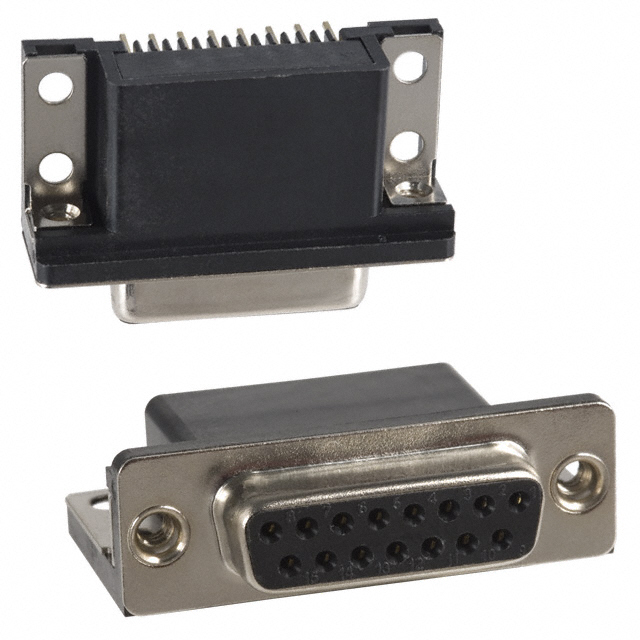

183-015-213R171

Active

MH Connectors

CONN DB15 FEMAL .590 R/A NICKEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference Guide Datasheet

183-015-213R171

Active

MH Connectors

CONN DB15 FEMAL .590 R/A NICKEL

Deep-Dive with AI

DocumentsBackshell Reference Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	183-015-213R171

Backset Spacing	0.59 "
Backset Spacing	14.99 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Ground Strap
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

183-015 Series

Part	Contact Finish Thickness	Current Rating (Amps)	Connector Type	Termination	Features	Shell Size, Connector Layout	Number of Rows	Material Flammability Rating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Backset Spacing	Backset Spacing	Mounting Type	Connector Style	Contact Type	Flange Feature	Color	Contact Material	Dielectric Material	Shell Material, Finish
MH Connectors 183-015-113R561	Flash	5 A	Male Pins Plug	Solder	Board Lock Grounding Indents	2	2	UL94 V-0	15	105 ░C	-55 °C	Gold	0.59 "	14.99 mm	Panel Mount Right Angle Through Hole	D-Sub	Signal	Female Screwlock (4-40) Mating Side	Black	Brass	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel
MH Connectors 183-015-113R171	Flash	5 A	Male Pins Plug	Solder	Ground Strap Grounding Indents	2	2	UL94 V-0	15	105 ░C	-55 °C	Gold	0.59 "	14.99 mm	Panel Mount Right Angle Through Hole	D-Sub	Signal	Housing/Shell (4-40)	Black	Brass	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel
MH Connectors 183-015-113R481	Flash	5 A	Male Pins Plug	Solder	Grounding Indents	2	2	UL94 V-0	15	105 ░C	-55 °C	Gold	0.59 "	14.99 mm	Panel Mount Right Angle Through Hole	D-Sub	Signal	Female Screwlock (4-40) Mating Side	Black	Brass	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel
MH Connectors 183-015-212-531	Flash	5 A	Receptacle Female Sockets	Solder		2	2	UL94 V-0	15	105 ░C	-55 °C	Gold	0.59 "	14.99 mm	Panel Mount Right Angle Through Hole	D-Sub	Signal	Housing/Shell (4-40)	Black		Polyester Glass Filled
MH Connectors 183-015-213R451	Flash	5 A	Receptacle Female Sockets	Solder		2	2	UL94 V-0	15	105 ░C	-55 °C	Gold	0.59 "	14.99 mm	Panel Mount Right Angle Through Hole	D-Sub	Signal	Housing/Shell (4-40)	Black	Brass	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel
MH Connectors 183-015-213R171	Flash	5 A	Receptacle Female Sockets	Solder	Ground Strap	2	2	UL94 V-0	15	105 ░C	-55 °C	Gold	0.59 "	14.99 mm	Panel Mount Right Angle Through Hole	D-Sub	Signal	Housing/Shell (4-40)	Black	Brass	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel
MH Connectors 183-015-112-561	Flash	5 A	Male Pins Plug	Solder	Board Lock Grounding Indents	2	2	UL94 V-0	15	105 ░C	-55 °C	Gold	0.59 "	14.99 mm	Panel Mount Right Angle Through Hole	D-Sub	Signal	Female Screwlock (4-40) Mating Side	Black		Polyester Glass Filled
MH Connectors 183-015-112-531	Flash	5 A	Male Pins Plug	Solder	Board Lock Grounding Indents	2	2	UL94 V-0	15	105 ░C	-55 °C	Gold	0.59 "	14.99 mm	Panel Mount Right Angle Through Hole	D-Sub	Signal	Housing/Shell (4-40)	Black		Polyester Glass Filled
MH Connectors 183-015-213R551	Flash	5 A	Receptacle Female Sockets	Solder		2	2	UL94 V-0	15	105 ░C	-55 °C	Gold	0.59 "	14.99 mm	Panel Mount Right Angle Through Hole	D-Sub	Signal	Housing/Shell (4-40)	Black	Brass	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel
MH Connectors 183-015-212-171	Flash	5 A	Receptacle Female Sockets	Solder	Ground Strap	2	2	UL94 V-0	15	105 ░C	-55 °C	Gold	0.59 "	14.99 mm	Panel Mount Right Angle Through Hole	D-Sub	Signal	Housing/Shell (4-40)	Black		Polyester Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.83
		10	$ 5.30
		25	$ 5.02
		70	$ 4.90
		140	$ 4.67
		280	$ 4.08
		490	$ 3.97
		980	$ 3.38
		2450	$ 3.15
Newark	Each	500	$ 4.23
		1000	$ 3.98

Description

General part information

183-015 Series

15 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Backshell Reference Guide

Datasheet
