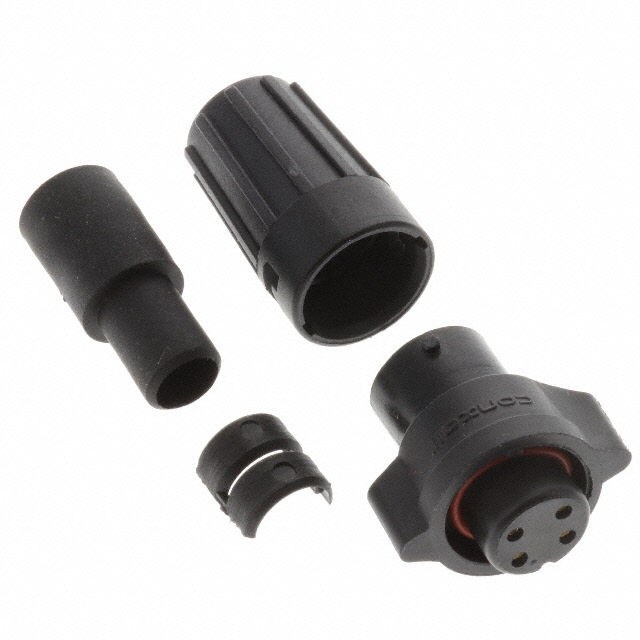

W6282-4SG-P-528

Active

Conxall/Switchcraft

CONN PLUG FMALE 4POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 4POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W6282-4SG-P-528

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Cable Opening [custom]	6.6 mm, 7.11 mm
Cable Opening [custom]	0.28 in, 0.26 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Shielding	Contact Finish - Mating	Applications	Connector Type	Features	Insert Material	Ingress Protection	Primary Material	Fastening Type	Contact Material	Voltage Rating	Orientation	Number of Positions	Color	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Backshell Material, Plating
Conxall/Switchcraft W6282-4SG-P-528	Varies by Wire Gauge	6.6 mm 7.11 mm	0.26 in 0.28 in	Unshielded	Gold	Automotive Communication Systems Instrumentation	Female Sockets Plug	Backshell Coupling Nut UV Resistant	Thermoplastic	IP66 IP67 IP68	Plastic	Bayonet Lock	Copper Alloy	300 VAC	Keyed	4	Black	85 °C	-40 °C	Free Hanging (In-Line)	Thermoplastic
Conxall/Switchcraft W6282-4PG-P-528	Varies by Wire Gauge	6.6 mm 7.11 mm	0.26 in 0.28 in	Unshielded	Gold	Automotive Communication Systems Instrumentation	Male Pins Plug	Backshell Coupling Nut UV Resistant	Thermoplastic	IP66 IP67 IP68	Plastic	Bayonet Lock	Copper Alloy	300 VAC	Keyed	4	Black	85 °C	-40 °C	Free Hanging (In-Line)	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 16.77

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources

No documents available
