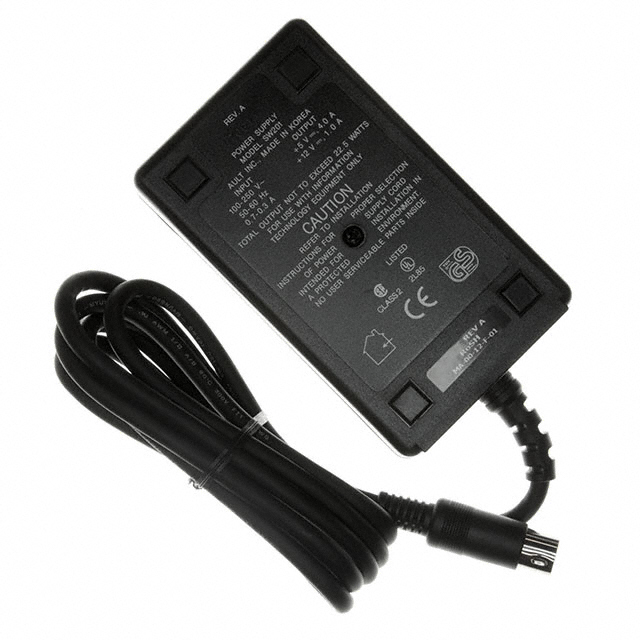

SW201KA0012F01
ObsoleteSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 5V/12V 32W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SW201KA0012F01
ObsoleteSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 5V/12V 32W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SW201KA0012F01 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Cord Length | 1.83 m |
| Cord Length | 72 in |
| Current - Output (Max) | 4 A, 1 A |
| Efficiency | 72 % |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| Output Connector | DIN |
| Output Connector | 5 Pin |
| Power (Watts) | 32 W |
| Region Utilized | International |
| Size / Dimension [x] | 129 mm |
| Size / Dimension [x] | 5.08 in |
| Size / Dimension [y] | 77.5 mm |
| Size / Dimension [y] | 3.05 in |
| Size / Dimension [z] | 1.59 " |
| Size / Dimension [z] | 40.5 mm |
| Voltage - Input [Max] | 250 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 5 V, 12 V |
| Weight | 370.13 g |
| Weight | 0.816 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SW201KA0012 Series
5V, 12V 32 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
