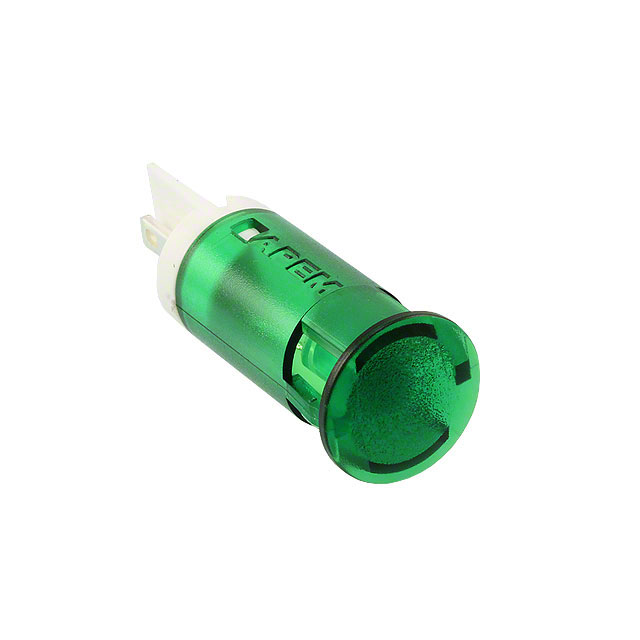

QS121XXG12
ActiveAPEM
INDICATOR 12MM FIXED GR 12V SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QS121XXG12
ActiveAPEM
INDICATOR 12MM FIXED GR 12V SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QS121XXG12 |
|---|---|
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [diameter] | 14 mm |
| Lens Transparency | Diffused |
| Millicandela Rating | 20 mcd |
| Panel Cutout Dimensions | 0.472 in |
| Panel Cutout Dimensions | 12 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Solder Lug |
| Type | LED |
| Viewing Angle | 30 ° |
| Voltage | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 3.07 | |
Description
General part information
QS121XXG Series
LED Panel Indicator Green Diffused 30° 12V 20mA Solder Lug
