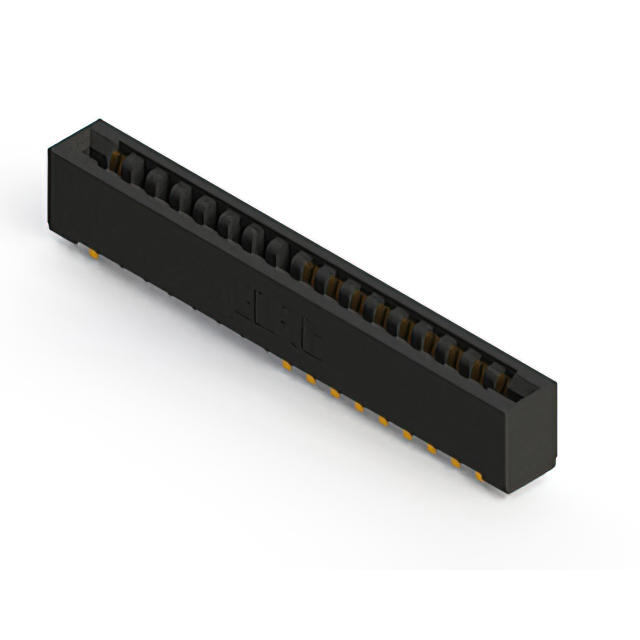

857-017-558-101
ActiveEDAC Inc.
CONN EDGE SGL FMALE 17POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-017-558-101
ActiveEDAC Inc.
CONN EDGE SGL FMALE 17POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-017-558-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
857-017 Series
...
| Part | Color | Material - Insulation | Termination | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Read Out | Number of Rows | Pitch [x] | Pitch [x] | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Finish | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Flange Feature | Number of Positions | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Single | 1 | 0.156 in | 3.96 mm | Female | 125 °C | -40 °C | Through Hole | Gold | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | ||||||
EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Solder | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Single | 1 | 0.156 in | 3.96 mm | Female | 125 °C | -40 °C | Through Hole Right Angle | Gold | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | ||||||
EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Wire Wrap | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Single | 1 | 0.156 in | 3.96 mm | Female | 125 °C | -40 °C | Through Hole | Gold | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Solder | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Dual | 2 | 0.156 in | 3.96 mm | Female | 125 °C | -40 °C | Through Hole | Gold | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 34 | |||||
EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Solder | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Dual | 2 | 0.156 in | 3.96 mm | Female | 125 °C | -40 °C | Through Hole Right Angle | Gold | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | 34 | ||||
EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Solder | Copper Alloy | 1 | Single | 1 | 0.156 in | 3.96 mm | Female | 125 °C | -40 °C | Through Hole Right Angle | Tin | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||||
EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Solder | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Single | 1 | 0.156 in | 3.96 mm | Female | 125 °C | -40 °C | Through Hole | Gold | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Floating Bobbin Flush Mount | 0.116 in | 2.95 mm | |||
EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Wire Wrap | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Single | 1 | 0.156 in | 3.96 mm | Female | 125 °C | -40 °C | Through Hole | Gold | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Floating Bobbin Flush Mount | 0.116 in | 2.95 mm | |||
EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Solder | Copper Alloy | 1 | Single | 1 | 0.156 in | 3.96 mm | Female | 125 °C | -40 °C | Through Hole | Tin | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | |||||||
EDAC Inc. | Black | Polyphenylene Sulfide (PPS) | Wire Wrap | Copper Alloy | 1 | Single | 1 | 0.156 in | 3.96 mm | Female | 125 °C | -40 °C | Through Hole | Tin | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Floating Bobbin Flush Mount | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 85.57 | |
Description
General part information
857-017 Series
17 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
