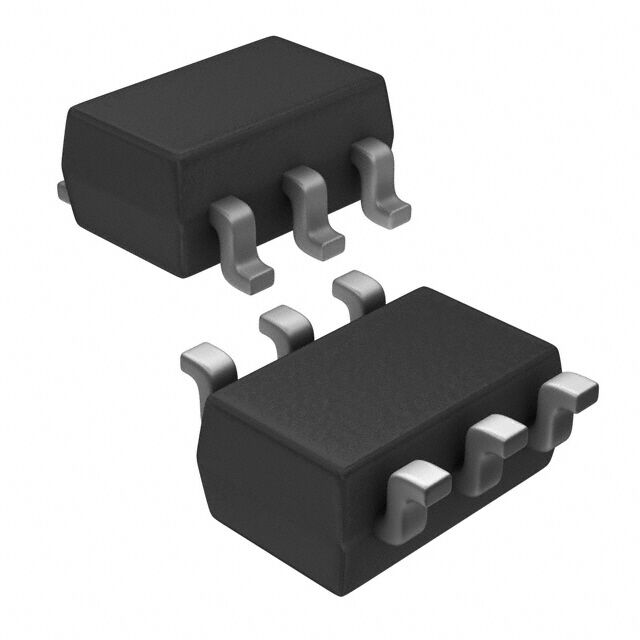

AO6604

Active

Alpha & Omega Semiconductor Inc.

MOSFET N/P-CH 20V 3.4A 6TSOP

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

MOSFET N/P-CH 20V 3.4A 6TSOP

Technical Specifications

Parameters and characteristics for this part

Specification	AO6604

Configuration	N and P-Channel Complementary
Current - Continuous Drain (Id) @ 25°C	3.4 A, 2.5 A
Drain to Source Voltage (Vdss)	20 V
FET Feature	Logic Level Gate, 4.5V Drive
Gate Charge (Qg) (Max) @ Vgs	3.8 nC
Input Capacitance (Ciss) (Max) @ Vds	320 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SC-74, SOT-457
Power - Max [Max]	1.1 W
Rds On (Max) @ Id, Vgs	65 mOhm
Supplier Device Package	6-TSOP
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1 V

Part	Input Capacitance (Ciss) (Max) @ Vds	FET Feature	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Package / Case	Mounting Type	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs	Power - Max [Max]	Current - Continuous Drain (Id) @ 25°C	Configuration	Supplier Device Package	Rds On (Max) @ Id, Vgs
Alpha & Omega Semiconductor Inc. AO6604	320 pF	4.5V Drive Logic Level Gate	MOSFET (Metal Oxide)	-55 °C	150 °C	20 V	SC-74 SOT-457	Surface Mount	1 V	3.8 nC	1.1 W	2.5 A 3.4 A	N and P-Channel Complementary	6-TSOP	65 mOhm
