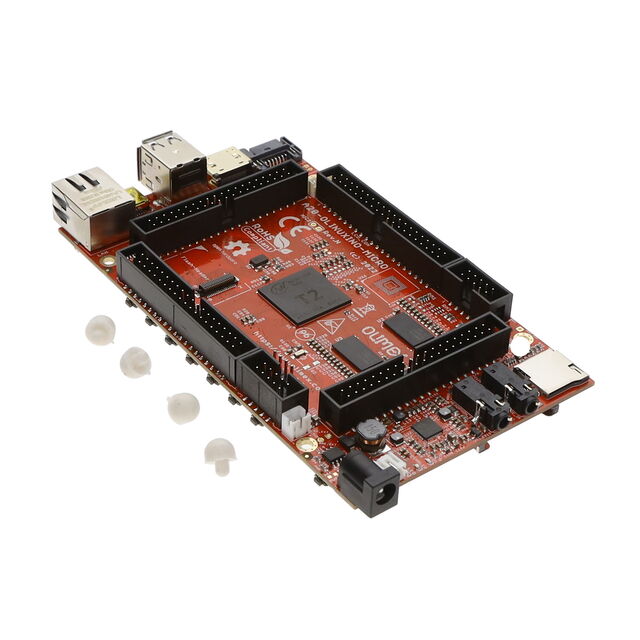

T2-OLINUXINO-MICRO-IND

Active

Olimex LTD

SBC 1.0GHZ 2 CORE 1GB/0GB RAM

Search across all available documentation for this part.

Active

Olimex LTD

SBC 1.0GHZ 2 CORE 1GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	T2-OLINUXINO-MICRO-IND

Contents	HDMI Cable
Core Processor	ARM Cortex-A7
Ethernet	1
Ethernet [Max]	1000 Mbps
Ethernet [Min]	100 Mbps
Expansion Site/Bus	Audio, SATA, SPI, microSD, GPIO, UART
Number of Cores	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
RAM Capacity/Installed	0 GB, 1 GB
Size / Dimension [x]	5.6 "
Size / Dimension [x]	142.24 mm
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Speed	1 GHz
Storage Interface	microSD, SATA HDD
USB	2 PHY, 1
Video Outputs	VGA, HDMI
Watchdog Timer	False

Part	Core Processor	Ethernet [Min]	Ethernet	Ethernet [Max]	Watchdog Timer	Operating Temperature [Max]	Operating Temperature [Min]	Expansion Site/Bus	Number of Cores	Contents	Storage Interface	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	RAM Capacity/Installed	USB	Speed	Video Outputs
Olimex LTD T2-OLINUXINO-MICRO-IND	ARM Cortex-A7	100 Mbps	1	1000 Mbps		85 °C	-40 °C	Audio GPIO microSD SATA SPI UART	2	HDMI Cable	microSD SATA HDD	3.25 "	5.6 "	142.24 mm	82.55 mm	0 GB 1 GB	1 2 PHY	1 GHz	HDMI VGA
Olimex LTD T2-OLINUXINO-MICRO-S16M-IND	ARM Cortex-A7	100 Mbps	1	1000 Mbps		85 °C	-40 °C	Audio GPIO microSD SATA SPI UART	2	HDMI Cable	microSD SATA HDD	3.25 "	5.6 "	142.24 mm	82.55 mm	0 GB 1 GB	1 2 PHY	1 GHz	HDMI VGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.87

General part information

Single Board Computer 1GHz 2 Core 1GB/0GB RAM ARM Cortex-A7
