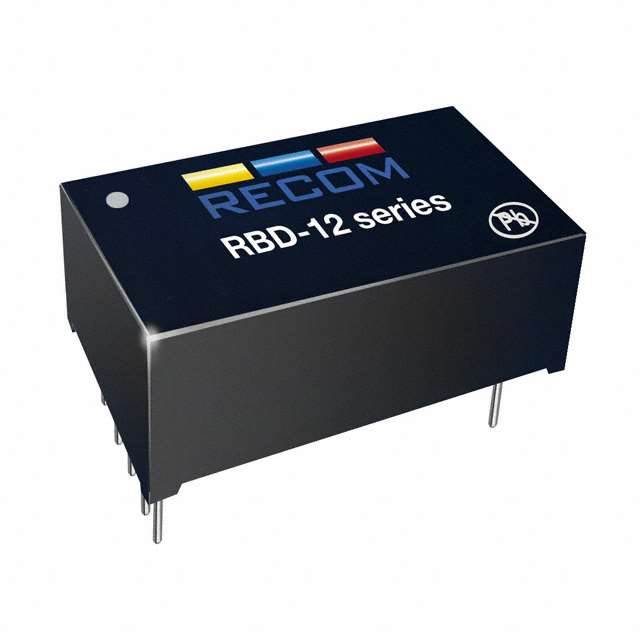

RBD-12-0.50

Obsolete

RECOM Power

LED DVR CC BUCK-BST 2-40V 500MA

Search across all available documentation for this part.

Obsolete

RECOM Power

LED DVR CC BUCK-BST 2-40V 500MA

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output [Max]	Voltage - Output [Min]	Topology	Features	Termination Style	Dimming	Current - Output (Max) [Max]	Efficiency	Voltage - Input (Min) [Min]	Approval Agency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Type	Weight	Weight	Voltage - Input (Max) [Max]	Package / Case
RECOM Power RBD-12-0.50/W	40 V	8 V	Buck-Boost	OTP Remote On/Off SCP	Wire Leads	Analog PWM	500 mA	90 %	8 V	cULus EN	Chassis Mount	-40 °C	75 ░C	20 W	16.7 mm	32.6 mm	0.44 "	11.1 mm	1.28 in	0.66 "	1	Constant Current	0.038 lb	17.24 g	36 V
RECOM Power RBD-12-0.35/W	40 V	8 V	Buck-Boost	OTP Remote On/Off SCP	Wire Leads	Analog PWM	350 mA	90 %	8 V	cULus EN	Chassis Mount	-40 °C	80 C	20 W	16.7 mm	32.6 mm	0.44 "	11.1 mm	1.28 in	0.66 "	1	Constant Current	0.038 lb	17.24 g	36 V
RECOM Power RBD-12-0.50	40 V	2 V	Buck-Boost	OTP Remote On/Off SCP		Analog PWM	500 mA	92 %	8 V	CE cULus EN	Through Hole	-40 °C	65 °C	20 W	16.7 mm	32.6 mm	0.44 "	11.1 mm	1.28 in	0.66 "	1	Constant Current	0.029 lb	13.15 g	36 V	7-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

500mA 2 ~ 40V Constant Current LED Driver Buck-Boost Topology 1 Output

Technical documentation and resources
