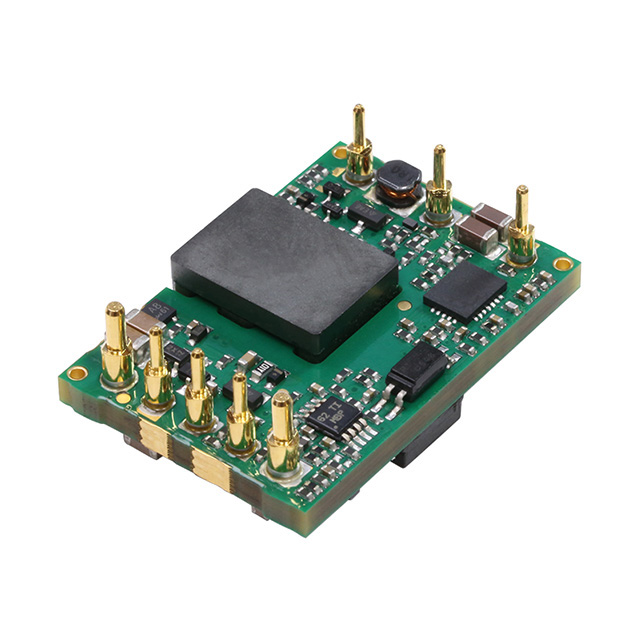

AVD50B-48S12-6L
ActiveARTESYN / Advanced Energy
MODULE DC-DC 1-OUT 12V 4.17A 50W 8-PIN 1/16-BRICK
Deep-Dive with AI
Search across all available documentation for this part.
AVD50B-48S12-6L
ActiveARTESYN / Advanced Energy
MODULE DC-DC 1-OUT 12V 4.17A 50W 8-PIN 1/16-BRICK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AVD50B-48S12-6L |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 4.17 A |
| Efficiency | 93 % |
| Features | OVP, OCP, OTP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Sixteenth Brick |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [z] | 9.2 mm |
| Size / Dimension [z] | 0.36 in |
| Supplier Device Package | Sixteenth Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
AVD50 Series
| Part | Applications | Mounting Type | Type | Voltage - Input (Max) [Max] | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Package / Case | Number of Outputs | Control Features | Efficiency | Features | Voltage - Output 1 | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ARTESYN / Advanced Energy | ITE (Commercial) | Through Hole | Isolated Module | 75 V | 50 W | 0.37 in | 1.3 " | 9.5 mm | 22.9 mm | 33 mm | 0.9 " | 10 A | 36 V | 8-DIP Module 1/16 Brick | 1 | Active High Enable | 92 % | Remote On/Off | 5 V | ||||||
ARTESYN / Advanced Energy | ITE (Commercial) | Through Hole | Isolated Module | 75 V | 50 W | 0.36 in | 1.3 " | 9.2 mm | 22.9 mm | 33 mm | 0.9 " | 10 A | 36 V | Sixteenth Brick | 1 | 91.5 % | OCP OTP OVP Remote On/Off | 5 V | Sixteenth Brick | 85 °C | -40 °C | 1.5 kV | |||
ARTESYN / Advanced Energy | ITE (Commercial) | Through Hole | Isolated Module | 75 V | 50 W | 0.37 in | 1.3 " | 9.5 mm | 22.9 mm | 33 mm | 0.9 " | 15 A | 36 V | 8-DIP Module 1/16 Brick | 1 | Active Low Enable | 91 % | Remote On/Off | 3.3 V | ||||||
ARTESYN / Advanced Energy | ITE (Commercial) | Through Hole | Isolated Module | 75 V | 50 W | 0.36 in | 1.3 " | 9.2 mm | 22.9 mm | 33 mm | 0.9 " | 4.17 A | 36 V | Sixteenth Brick | 1 | 93 % | OCP OTP OVP Remote On/Off | 12 V | Sixteenth Brick | 85 °C | -40 °C | 1.5 kV | |||
ARTESYN / Advanced Energy | ITE (Commercial) | Surface Mount | Isolated Module | 75 V | 50 W | 0.37 in | 1.3 " | 9.4 mm | 22.9 mm | 33 mm | 0.9 " | 4.17 A | 36 V | Sixteenth Brick | 1 | 93 % | OCP OTP OVP Remote On/Off | 12 V | Sixteenth Brick | 85 °C | -40 °C | 1.5 kV | |||
ARTESYN / Advanced Energy | ITE (Commercial) | Through Hole | Isolated Module | 75 V | 50 W | 0.47 " | 1.3 " | 33 mm | 0.9 " | 4.17 A | 36 V | Sixteenth Brick | 1 | 93 % | OCP OTP OVP Remote On/Off | 12 V | Sixteenth Brick | 85 °C | -40 °C | 1.5 kV | 12 mm | 22.9 mm | |||
ARTESYN / Advanced Energy | ITE (Commercial) | Surface Mount | Isolated Module | 75 V | 50 W | 10 A | 36 V | 1 | Active Low Enable | 92 % | Remote On/Off | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 35.70 | |
| 5 | $ 35.42 | |||
| 10 | $ 35.15 | |||
| 25 | $ 34.60 | |||
| 40 | $ 32.95 | |||
| 192 | $ 30.21 | |||
Description
General part information
AVD50 Series
Isolated Module DC DC Converter 1 Output 12V 4.17A 36V - 75V Input
