100007542

Active

Telegartner Inc

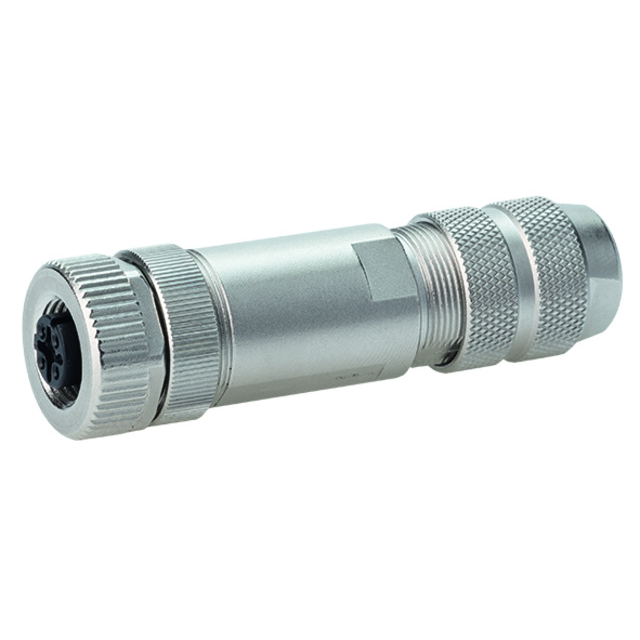

CU-CN M12D-CS SCT FIELD C5 D5-8

Search across all available documentation for this part.

Active

Telegartner Inc

CU-CN M12D-CS SCT FIELD C5 D5-8

Technical Specifications

Parameters and characteristics for this part

Specification	100007542

Applications	Industrial
Backshell Material, Plating	Brass and Zinc Die Cast, Nickel
Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	5 mm
Cable Opening [Min] [custom]	0.197 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	D
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass and Zinc Die Cast
Shell Size - Insert	M12-4
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 VDC

Part	Shell Finish	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Termination	Mounting Type	Contact Material	Shielding	Current Rating (Amps)	Shell Material	Insert Material	Voltage Rating	Backshell Material, Plating	Primary Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Color	Features	Ingress Protection	Contact Finish - Mating	Connector Type	Material Flammability Rating	Number of Positions	Orientation	Mounting Feature
Telegartner Inc 100007542	Nickel	5 mm	0.197 in	8 mm	0.315 in	Screw	Free Hanging (In-Line)	Brass	Unshielded	4 A	Brass and Zinc Die Cast	Nylon Polyamide (PA)	250 VDC	Brass and Zinc Die Cast Nickel	Metal	Industrial	85 °C	-40 °C	M12-4	Silver	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Female Sockets Plug	UL94 HB	4	D
Telegartner Inc 100007538	Nickel						Free Hanging (In-Line) Panel Mount	Bronze	Unshielded	0.5 A	Brass	Nylon Polyamide (PA)	50 VAC 60 VDC	Brass Nickel	Metal	Industrial	85 °C	-40 °C	M12-8	Silver	Backshell	IP67 - Dust Tight Waterproof	Gold	Female Sockets Plug	UL94 V-0	8	X	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (Data) Position Circular Connector Plug, Female Sockets Screw
