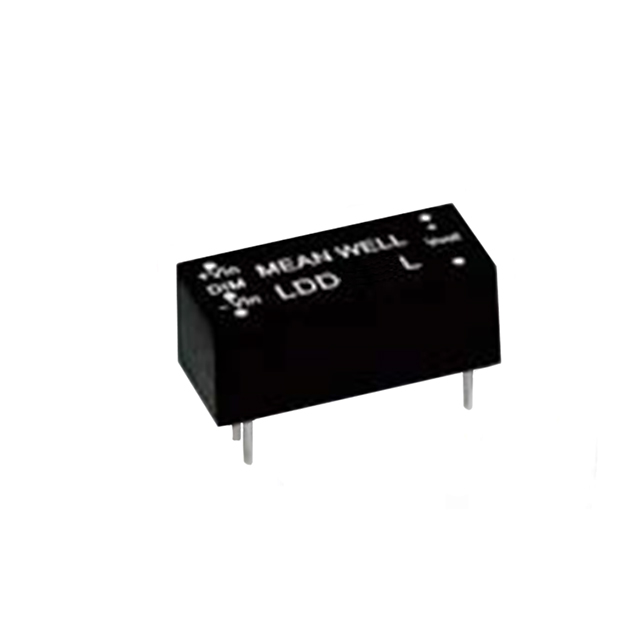

LDD-1500L

Obsolete

MEAN WELL USA Inc.

LED DRIVER CC BUCK 2-30V 1.5A

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

LED DRIVER CC BUCK 2-30V 1.5A

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Dimming	Features	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output [Max]	Voltage - Output [Min]	Termination Style	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Ratings	Topology	Voltage - Input (Min) [Min]	Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Package / Case	Package / Case
MEAN WELL USA Inc. LDD-1500HW	97 %	PWM	OTP Remote On/Off SCP	Chassis Mount	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	46 V	2 V	Wire Leads	CE	85 °C	-40 °C	1	IP67	Buck	9 V	Constant Current	1.5 A	52 V
MEAN WELL USA Inc. LDD-1500LW	95 %	PWM	OTP Remote On/Off SCP	Chassis Mount	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	30 VDC	2 V	Wire Leads	CE	85 °C	-40 °C	1	IP67	Buck	6 V	Constant Current	1.5 A	36 V
MEAN WELL USA Inc. LDD-1500L	95 %	Analog PWM	Remote On/Off SCP	Through Hole	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	30 VDC	2 V		CE	71 °C	-40 °C	1		Buck	6 V	Constant Current	1.5 A	36 V	9 PC Pad	24-DIP Module
MEAN WELL USA Inc. LDD-1500LS	95 %	Analog PWM	Remote On/Off SCP	Surface Mount	20.3 mm	1.25 "	31.8 mm	0.8 in	0.45 "	11.4 mm	30 VDC	2 V		CE	71 °C	-40 °C	1		Buck	6 V	Constant Current	1.5 A	36 V		24-SMD Module 18 Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.67

General part information

1.5A 2 ~ 30V Constant Current LED Driver Buck Topology 1 Output
