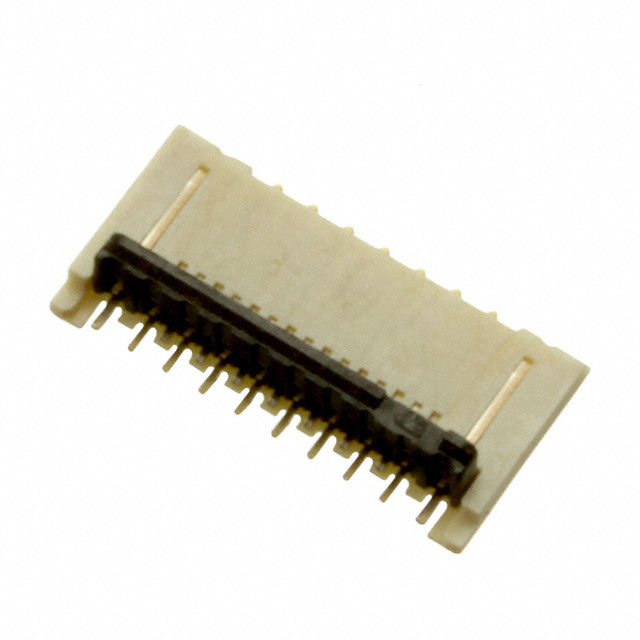

FH64MA-15S-0.25SHW(99)

Active

Hirose Electric USA, Inc.

CONN FPC TOP 15POS 0.25MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FH64MA-15S-0.25SHW(99) Spec

FH64MA-15S-0.25SHW(99)

Active

Hirose Electric USA, Inc.

CONN FPC TOP 15POS 0.25MM R/A

Deep-Dive with AI

DocumentsDatasheet FH64MA-15S-0.25SHW(99) Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH64MA-15S-0.25SHW(99)

Actuator Color	Black
Actuator Material	Nylon, Polyamide (PA)
Cable End Type	Notched
Connector/Contact Type	Contacts, Top
Contact Finish	Gold
Contact Finish Thickness	1.25 Áin
Contact Finish Thickness	0.03 Ám
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.2 A
FFC, FCB Thickness	0.12 mm
Flat Flex Type	FPC
Height Above Board	0.02 in
Height Above Board	0.5 mm
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	10
Mounting Type	Surface Mount, Right Angle
Number of Positions	15
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.01 in
Pitch [x]	0.25 mm
Termination	Solder
Voltage Rating	30 VDC

FH64M Series

Part	Housing Material	Connector/Contact Type	Termination	Locking Feature	Cable End Type	Pitch [x]	Pitch [x]	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Material Flammability Rating	Flat Flex Type	FFC, FCB Thickness	Actuator Color	Mounting Type	Contact Finish	Voltage Rating	Actuator Material	Height Above Board	Height Above Board	Mating Cycles	Current Rating (Amps)	Number of Positions	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. FH64M-11S-0.25SHW	Liquid Crystal Polymer (LCP)	Contacts Top and Bottom	Solder	Backlock Flip Lock	Straight	0.01 in	0.25 mm	Beige	85 °C	-55 °C	Phosphor Bronze	UL94 V-0	FPC	0.12 mm	Black	Surface Mount Right Angle	Gold	30 VDC	Nylon Polyamide (PA)	0.02 in	0.5 mm	10	0.2 A	11
Hirose Electric USA, Inc. FH64MA-19S-0.25SHW	Liquid Crystal Polymer (LCP) Halogen Free	Contacts Top	Solder	Backlock Flip Lock	Notched	0.01 in	0.25 mm	Beige	85 °C	-55 °C	Phosphor Bronze	UL94 V-0	FPC	0.12 mm	Black	Surface Mount Right Angle	Gold	30 VDC	Nylon Polyamide (PA)	0.02 in	0.5 mm	10	0.2 A	19	1.25 Áin	0.03 Ám
Hirose Electric USA, Inc. FH64MA-15S-0.25SHW(99)	Liquid Crystal Polymer (LCP) Halogen Free	Contacts Top	Solder	Backlock Flip Lock	Notched	0.01 in	0.25 mm	Beige	85 °C	-55 °C	Phosphor Bronze	UL94 V-0	FPC	0.12 mm	Black	Surface Mount Right Angle	Gold	30 VDC	Nylon Polyamide (PA)	0.02 in	0.5 mm	10	0.2 A	15	1.25 Áin	0.03 Ám
Hirose Electric USA, Inc. FH64MA-19S-0.25SHW(99)	Liquid Crystal Polymer (LCP) Halogen Free	Contacts Top	Solder	Backlock Flip Lock	Notched	0.01 in	0.25 mm	Beige	85 °C	-55 °C	Phosphor Bronze	UL94 V-0	FPC	0.12 mm	Black	Surface Mount Right Angle	Gold	30 VDC	Nylon Polyamide (PA)	0.02 in	0.5 mm	10	0.2 A	19	1.25 Áin	0.03 Ám
Hirose Electric USA, Inc. FH64MA-11S-0.25SHW	Liquid Crystal Polymer (LCP) Halogen Free	Contacts Top	Solder	Backlock Flip Lock	Notched	0.01 in	0.25 mm	Beige	85 °C	-55 °C	Phosphor Bronze	UL94 V-0	FPC	0.12 mm	Black	Surface Mount Right Angle	Gold	30 VDC	Nylon Polyamide (PA)	0.02 in	0.5 mm	10	0.2 A	11	1.25 Áin	0.03 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.69
		10	$ 3.35
		25	$ 3.17
		50	$ 3.10
		100	$ 2.95
		250	$ 2.58
	Digi-Reel®	1	$ 3.69
		10	$ 3.35
		25	$ 3.17
		50	$ 3.10
		100	$ 2.95
		250	$ 2.58
	Tape & Reel (TR)	500	$ 1.69

Description

General part information

FH64M Series

15 Position FPC Connector Contacts, Top 0.010" (0.25mm) Surface Mount, Right Angle
