19390240427

Active

HARTING Technology Group

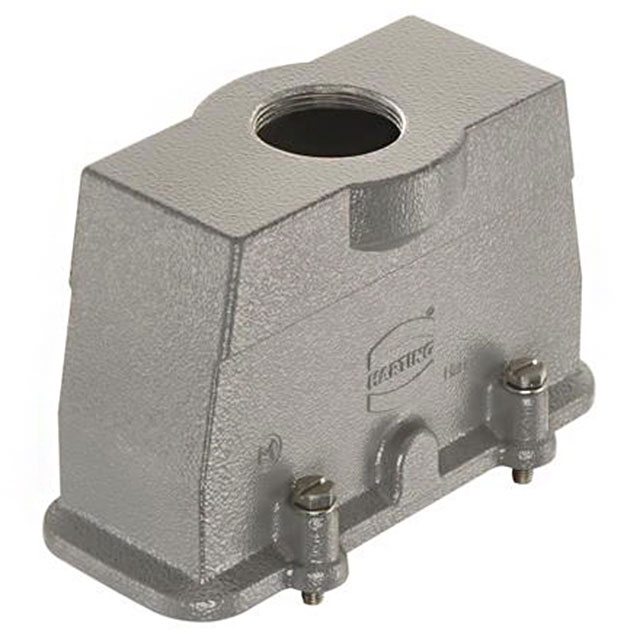

24B HP SCREW DOWN HOOD, TOP ENTRY, M32

Search across all available documentation for this part.

Active

HARTING Technology Group

24B HP SCREW DOWN HOOD, TOP ENTRY, M32

Technical Specifications

Parameters and characteristics for this part

Specification	19390240427

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	5.236 "
Size / Dimension [x]	133 mm
Size / Dimension [y]	70.8 mm
Size / Dimension [y]	2.787 in
Size / Dimension [z]	84.5 mm
Size / Dimension [z]	3.327 in
Style	Top Entry
Thread Size	M32

Part	Operating Temperature [Max]	Operating Temperature [Min]	Style	Housing Material	Lock Location	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Ingress Protection	Size	Connector Type	Thread Size	Housing Color	Housing Finish
HARTING Technology Group 19390240427	125 °C	-40 °C	Top Entry	Aluminum Die Cast	Screw Locks on Hood	84.5 mm	70.8 mm	3.327 in	5.236 "	2.787 in	133 mm	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	24 B	Hood	M32	Gray	Powder Coated
HARTING Technology Group 19390240528	125 °C	-40 °C	Side Entry	Aluminum Die Cast	Screw Locks on Hood	85 mm	70.8 mm	3.346 in	5.236 "	2.787 in	133 mm	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	24 B	Hood		Gray	Powder Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M32 24B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
