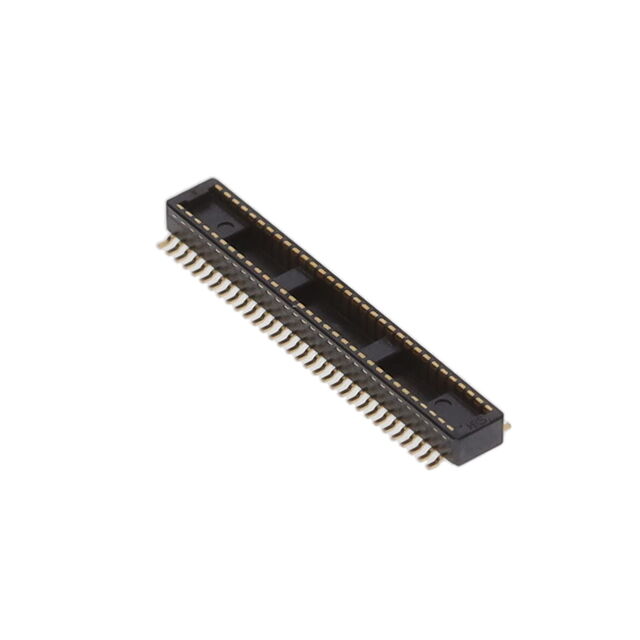

DF40JC-60DP-0.4V(53)

Active

Hirose Electric USA, Inc.

CONN PLUG 60POS SMD GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN PLUG 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Number of Positions	Mounting Type	Number of Rows	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. DF40JC-40DP-0.4V(53)	1.14 mm	0.045 in	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	40	Surface Mount	2	2 mm
Hirose Electric USA, Inc. DF40JC-60DP-0.4V(53)	1.14 mm	0.045 in	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	60	Surface Mount	2	2 mm
Hirose Electric USA, Inc. DF40JC-100DP-0.4V(53)						Outer Shroud Contacts Plug	100
Hirose Electric USA, Inc. DF40JC-40DS-0.4V(53)			0.016 in	0.4 mm	Gold	Center Strip Contacts Receptacle	40	Surface Mount	2	2 mm	0.057 in	1.45 mm
Hirose Electric USA, Inc. DF40JC-44DP-0.4V(53)	1.14 mm	0.045 in	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	44	Surface Mount	2	2 mm
Hirose Electric USA, Inc. DF40JC-50DS-0.4V(53)			0.016 in	0.4 mm	Gold	Center Strip Contacts Receptacle	50	Surface Mount	2	2 mm	0.057 in	1.45 mm
Hirose Electric USA, Inc. DF40JC-20DS-0.4V(53)			0.016 in	0.4 mm	Gold	Center Strip Contacts Receptacle	20	Surface Mount	2	2 mm	0.057 in	1.45 mm
Hirose Electric USA, Inc. DF40JC-34DP-0.4V(53)	1.14 mm	0.045 in	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	34	Surface Mount	2	2 mm
Hirose Electric USA, Inc. DF40JC-90DS-0.4V(53)			0.016 in	0.4 mm	Gold	Center Strip Contacts Receptacle	90	Surface Mount	2	2 mm	0.057 in	1.45 mm
Hirose Electric USA, Inc. DF40JC-44DS-0.4V(53)			0.016 in	0.4 mm	Gold	Center Strip Contacts Receptacle	44	Surface Mount	2	2 mm	0.057 in	1.45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources
