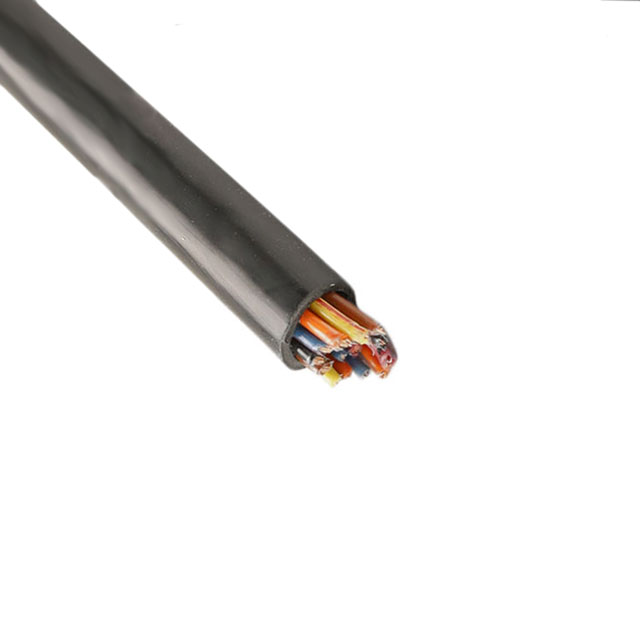

M3819 BK005

Active

ALPHA WIRE

AE TRAY CABLE /100 FT /EACH

Search across all available documentation for this part.

Active

ALPHA WIRE

AE TRAY CABLE /100 FT /EACH

Technical Specifications

Parameters and characteristics for this part

Specification	M3819 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	0.0152 in
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	14.45 mm
Jacket (Insulation) Diameter [diameter]	0.569 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	19
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Voltage	600 V
Wire Gauge	18 AWG

Part	Length [x]	Length [x]	Conductor Insulation	Conductor Material	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket Color
ALPHA WIRE M3819 BK002	500 '	152.4 m	Poly-Vinyl Chloride (PVC)	Copper Bare	600 V	90 °C	-25 °C	Poly-Vinyl Chloride (PVC)	14.45 mm	0.569 "	1.6 mm	0.063 in	19	18 AWG	0.0152 in	7	Multi-Conductor	Black
ALPHA WIRE M3819 BK005	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)	Copper Bare	600 V	90 °C	-25 °C	Poly-Vinyl Chloride (PVC)	14.45 mm	0.569 "	1.6 mm	0.063 in	19	18 AWG	0.0152 in	7	Multi-Conductor	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Conductor Multi-Conductor Cable Black 18 AWG 100.0' (30.5m)
