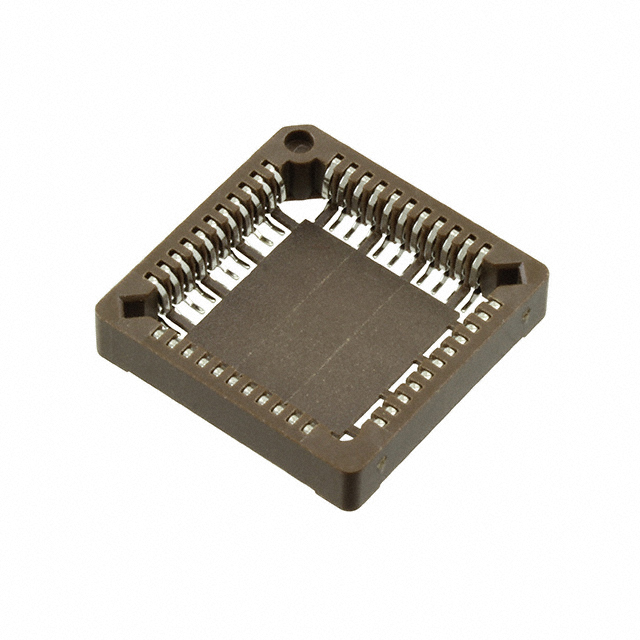

540-88-044-17-400

Active

PRECI-DIP SA

CONN SOCKET PLCC 44POS TIN

Deep-Dive with AI

Search across all available documentation for this part.

540-88-044-17-400

Active

PRECI-DIP SA

CONN SOCKET PLCC 44POS TIN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	540-88-044-17-400

Contact Finish - Post	Tin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	20 mOhm
Current Rating (Amps)	1 A
Features	Closed Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions or Pins (Grid)	44
Number of Positions or Pins (Grid) [custom]	4, 11
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Type	PLCC

540-88 Series

Part	Current Rating (Amps)	Contact Resistance	Contact Material - Post	Type	Mounting Type	Contact Material - Mating	Features	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish - Post	Termination	Material Flammability Rating	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid) [custom]
PRECI-DIP SA 540-88-068-17-400-2	1 A	20 mOhm	Phosphor Bronze	PLCC	Surface Mount	Phosphor Bronze	Board Guide Closed Frame	0.05 in	1.27 mm	2.54 mm	0.1 in	4	68	17	Tin	Solder	UL94 V-0
PRECI-DIP SA 540-88-032-17-400	1 A	20 mOhm	Phosphor Bronze	PLCC	Surface Mount	Phosphor Bronze	Closed Frame	0.05 in	1.27 mm	2.54 mm	0.1 in				Tin	Solder	UL94 V-0	32
PRECI-DIP SA 540-88-044-17-400	1 A	20 mOhm	Phosphor Bronze	PLCC	Surface Mount	Phosphor Bronze	Closed Frame	0.05 in	1.27 mm	2.54 mm	0.1 in				Tin	Solder	UL94 V-0	44	4 11
PRECI-DIP SA 540-88-032-24-008	1 A	20 mOhm	Phosphor Bronze	PLCC	Through Hole	Phosphor Bronze	Closed Frame	0.05 in	1.27 mm	2.54 mm	0.1 in				Tin	Solder	UL94 V-0	32		0.122 "	3.1 mm
PRECI-DIP SA 540-88-084-24-008	1 A	20 mOhm	Phosphor Bronze	PLCC	Through Hole	Phosphor Bronze	Closed Frame	0.05 in	1.27 mm	2.54 mm	0.1 in				Tin	Solder	UL94 V-0			0.122 "	3.1 mm
PRECI-DIP SA 540-88-028-24-008	1 A	20 mOhm	Phosphor Bronze	PLCC	Through Hole	Phosphor Bronze	Closed Frame	0.05 in	1.27 mm	2.54 mm	0.1 in	4		7	Tin	Solder	UL94 V-0	28		0.122 "	3.1 mm
PRECI-DIP SA 540-88-020-17-400-TR	1 A	20 mOhm	Phosphor Bronze	PLCC	Surface Mount	Phosphor Bronze	Closed Frame	0.05 in	1.27 mm	2.54 mm	0.1 in	4		5	Tin	Solder	UL94 V-0					20
PRECI-DIP SA 540-88-068-24-008	1 A	20 mOhm	Phosphor Bronze	PLCC	Through Hole	Phosphor Bronze	Closed Frame	0.05 in	1.27 mm	2.54 mm	0.1 in	4	68	17	Tin	Solder	UL94 V-0			0.122 "	3.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1540	$ 0.93

Description

General part information

540-88 Series

44 (4 x 11) Pos PLCC Socket Tin Surface Mount

Documents

Technical documentation and resources

No documents available
