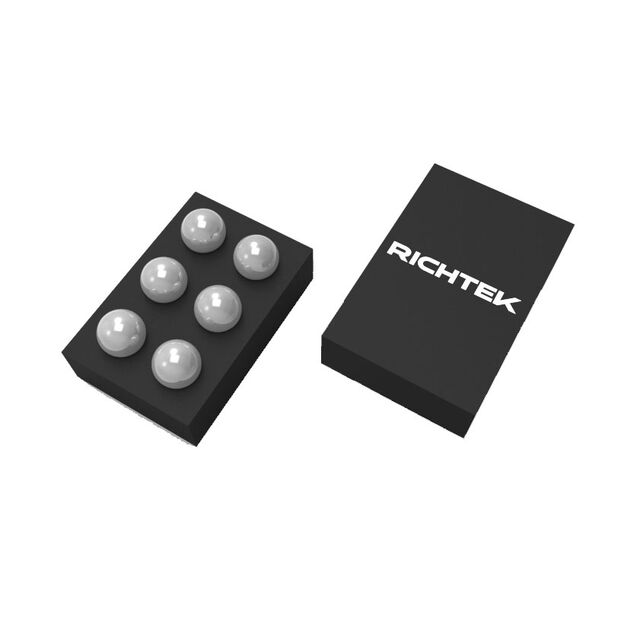

RT5716P-BBA
ActiveRichtek USA Inc.
IC REG BUCK PROG 1A 6TWLCSP-B
Deep-Dive with AI
Search across all available documentation for this part.
RT5716P-BBA
ActiveRichtek USA Inc.
IC REG BUCK PROG 1A 6TWLCSP-B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT5716P-BBA |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 4 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Programmable |
| Package / Case | WLCSP, 6-XFBGA |
| Supplier Device Package | 6-TWL-CSP-B (0.69x1.04) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 1.8 V |
| Voltage - Output (Max) [Max] | 0.775 V |
| Voltage - Output (Min/Fixed) | 0.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.23 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.62 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 3000 | $ 0.29 | ||
| 6000 | $ 0.26 | |||
| 9000 | $ 0.25 | |||
| 15000 | $ 0.24 | |||
Description
General part information
RT5716P Series
Buck Switching Regulator IC Positive Programmable 0.4V 1 Output 1A 6-XFBGA, WLCSP
Documents
Technical documentation and resources
No documents available
