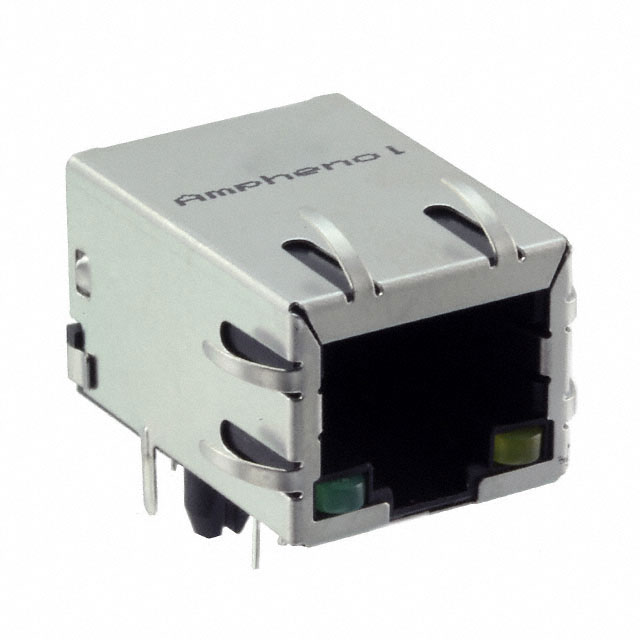

RJMG1BD3B8K1ANR
ActiveAmphenol ICC (Commercial Products)
CONN JACK 1PORT 100 BASE-T PCB
Deep-Dive with AI
Search across all available documentation for this part.
RJMG1BD3B8K1ANR
ActiveAmphenol ICC (Commercial Products)
CONN JACK 1PORT 100 BASE-T PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJMG1BD3B8K1ANR |
|---|---|
| Applications | 10/100 Base-T, AutoMDIX |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Height Above Board | 0.526 in |
| Height Above Board | 13.36 mm |
| Housing Material | Polyamide (PA), Nylon |
| LED Color | Yellow - Green |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 90 ° |
| Shield Material | Stainless Steel |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.61 | |
| 10 | $ 4.18 | |||
| 25 | $ 3.96 | |||
| 60 | $ 3.87 | |||
| 120 | $ 3.69 | |||
| 240 | $ 3.23 | |||
| 480 | $ 3.13 | |||
| 960 | $ 2.67 | |||
| 2400 | $ 2.49 | |||
Description
General part information
RJMG1 Series
1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
