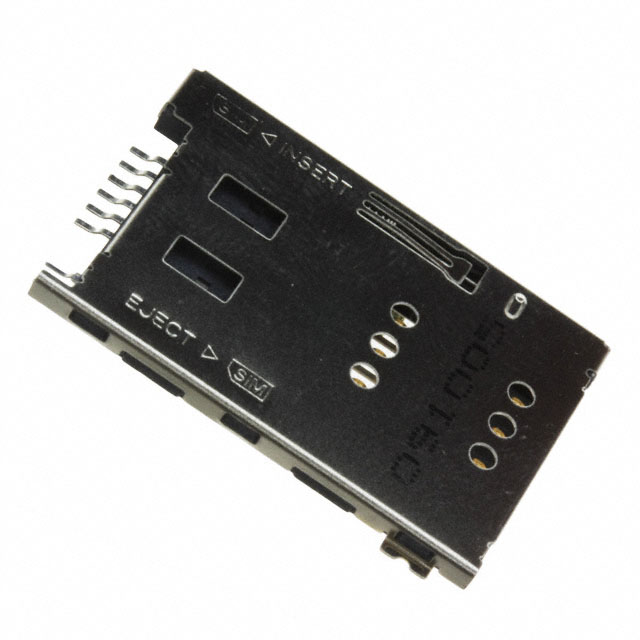

101-00306-82
ActiveAmphenol ICC (Commercial Products)
CONN SIM CARD PUSH-PUSH R/A SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
101-00306-82
ActiveAmphenol ICC (Commercial Products)
CONN SIM CARD PUSH-PUSH R/A SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 101-00306-82 |
|---|---|
| Card Type | SIM Card |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Features | Switch |
| Height Above Board | 1.95 mm |
| Height Above Board | 0.077 in |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 (6 + 2) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.71 | |
| 10 | $ 2.35 | |||
| 25 | $ 2.25 | |||
| 50 | $ 2.20 | |||
| 100 | $ 2.10 | |||
| 250 | $ 1.90 | |||
| Digi-Reel® | 1 | $ 2.71 | ||
| 10 | $ 2.35 | |||
| 25 | $ 2.25 | |||
| 50 | $ 2.20 | |||
| 100 | $ 2.10 | |||
| 250 | $ 1.90 | |||
| Tape & Reel (TR) | 900 | $ 1.70 | ||
| 1800 | $ 1.45 | |||
| 2700 | $ 1.40 | |||
| 6300 | $ 1.33 | |||
Description
General part information
101-00306 Series
8 (6 + 2) Position Card Connector SIM Card Surface Mount, Right Angle Gold
