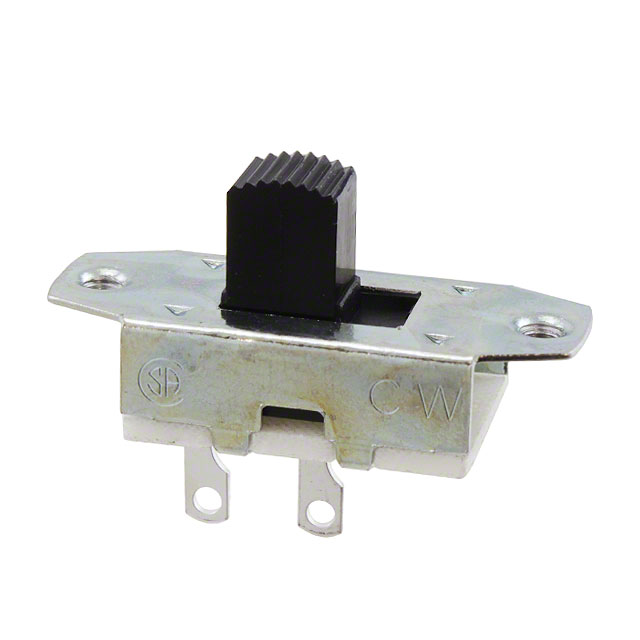

GF-323-0101

Active

CW Industries

SWITCH SLIDE SPST 3A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH SLIDE SPST 3A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Actuator Length [x]	Contact Material	Electrical Life	Circuit	Termination Style	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating - DC	Voltage Rating - AC	Actuator Type	Contact Timing	Actuator Material	Mechanical Life	Switch Travel	Switch Travel [custom]
CW Industries GF-323-0092	Silver	19.05 mm	Copper	6000 Cycles	SPST	Wire Wrap	On-Off	104 °C	-10 °C	3 A 500 mA	125 VDC	125 V	Standard	Not Specified	Nylon 6/6 Polyamide (PA66)	10000 Steps	4.01 mm
CW Industries GF-323-0101	Silver	8.74 mm	Copper	6000 Cycles	SPST	Solder Lug	On-Off	104 °C	-10 °C	3 A 500 mA	125 VDC	125 V	Standard	Not Specified	Nylon 6/6 Polyamide (PA66)	10000 Steps		3.89 mm
CW Industries GF-323-0001	Silver	8.74 mm	Copper	6000 Cycles	SPST	PC Pin	On-Off	104 °C	-10 °C	3 A 500 mA	125 VDC	125 V	Standard	Not Specified	Nylon 6/6 Polyamide (PA66)	10000 Steps	4.01 mm
CW Industries GF-323-0105	Silver	0.79 mm	Copper	6000 Cycles	SPST	Solder Lug	On-Off	104 °C	-10 °C	3 A 500 mA	125 VDC	125 V	Screwdriver Slot	Not Specified	Nylon 6/6 Polyamide (PA66)	10000 Steps	4.01 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 1.10

General part information

Slide Switch SPST Panel Mount
