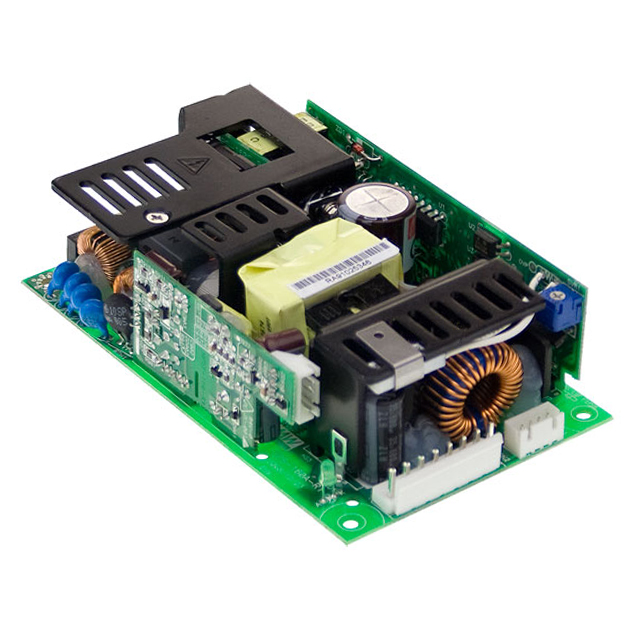

RPT-160A
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 5V 12V -5V 96W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RPT-160A
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 5V 12V -5V 96W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RPT-160A |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 9 A |
| Current - Output 2 [custom] | 3.8 A |
| Current - Output 3 | 600 mA |
| Efficiency | 84 % |
| Features | Adjustable Output, Universal Input |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 96 W |
| Power (Watts) | 141 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 1.36 " |
| Size / Dimension [z] | 34.5 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 12 V |
| Voltage - Output 3 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 75.31 | |
| 5 | $ 70.95 | |||
| 10 | $ 69.15 | |||
| 25 | $ 66.84 | |||
Description
General part information
RPT-160 Series
Open Frame AC DC Converters 3 Output 5V 12V -5V 90 ~ 264 VAC, 127 ~ 370 VDC Input
