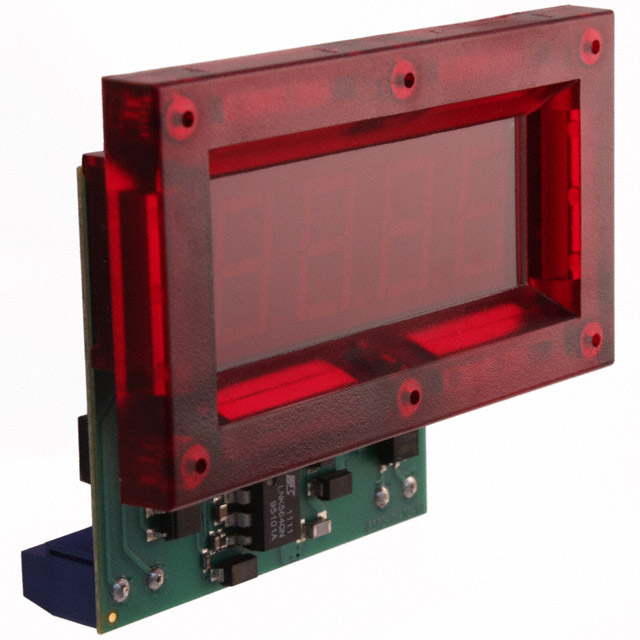

DMU-30DCV-0-DR-C

Obsolete

Murata Power Solutions Inc.

VOLTMETER 200VDC LED PANEL MOUNT

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

VOLTMETER 200VDC LED PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	DMU-30DCV-0-DR-C

Display Characters - Height [z]	14.2 mm
Display Characters - Height [z]	0.56 in
Display Type	LED - Red Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	200 V
Measuring Range [Min]	-200 V
Measuring Type	Voltage
Number of Characters Per Row	3.5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	53.8 mm
Panel Cutout Dimensions [y]	22.3 mm
Termination Style	Screw Terminal
Type	Voltmeter
Voltage - Supply [Max]	264 VDC
Voltage - Supply [Min]	85 VDC
Weight	0.079 lb
Weight	35.83 g

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Display Characters - Height [z]	Display Characters - Height [z]	Number of Characters Per Row	Measuring Range [Min]	Measuring Range [Max]	Ingress Protection	Type	Measuring Type	Display Type	Weight	Weight	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]
Murata Power Solutions Inc. DMU-30DCV-0-DR-C	22.3 mm	53.8 mm	14.2 mm	0.56 in	3.5	-200 V	200 V	IP65 - Dust Tight Water Resistant	Voltmeter	Voltage	LED - Red Characters	0.079 lb	35.83 g	264 VDC	85 VDC	Screw Terminal	-25 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Voltmeter LED - Red Characters Display Panel Mount
