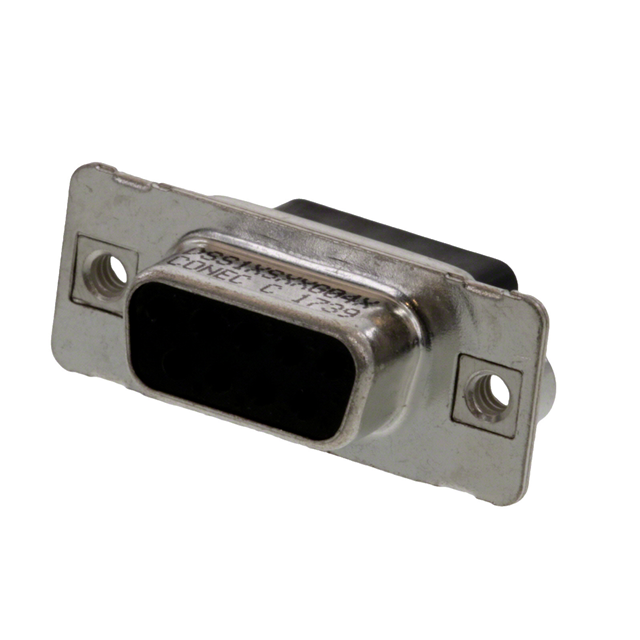

DSS1XSXXG04X

Active

Amphenol CONEC

D-SUB HOUSING, RCPT, 9POS, SIZE DE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

D-SUB HOUSING, RCPT, 9POS, SIZE DE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	DSS1XSXXG04X

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Cable Side
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	2
Shell Finish Thickness	8 µm
Shell Finish Thickness	315 µin
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1

Part	Flange Feature	Number of Positions	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Color	Shell Finish Thickness	Shell Finish Thickness	Note	Contact Type	Connector Type	Number of Rows	Connector Style
Amphenol CONEC DSS1XSXXG04X	Cable Side	9	Free Hanging (In-Line)	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Black	8 µm	315 µin	Contacts Not Included	Signal	Receptacle for Female Contacts	2	D-Sub
Amphenol CONEC DSS1XSXXB01X	Housing/Shell (Unthreaded)	9	Free Hanging (In-Line)	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Black	8 µm	315 µin	Contacts Not Included	Signal	Receptacle for Female Contacts	2	D-Sub

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Receptacle for Female Contacts Housing D-Sub Connector 9 Position
