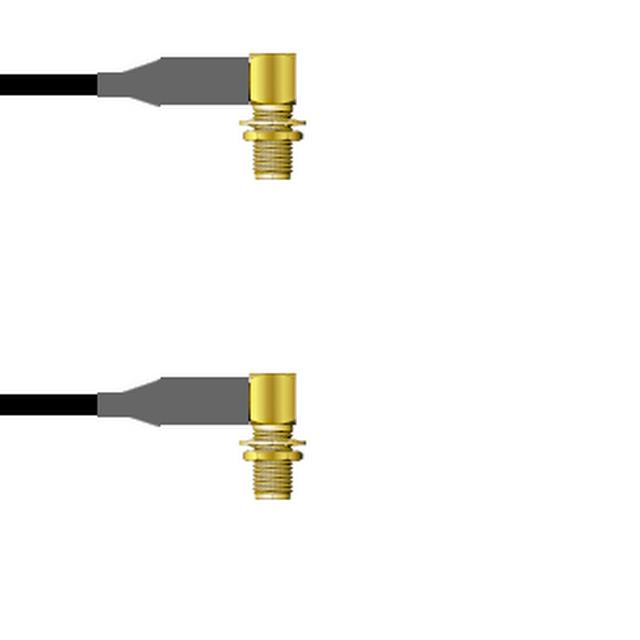

Q-2R02R0008.75M
ActiveAmphenol Custom Cable
CBL ASSY SMA JACK TO JACK 29.53"
Deep-Dive with AI
Search across all available documentation for this part.
Q-2R02R0008.75M
ActiveAmphenol Custom Cable
CBL ASSY SMA JACK TO JACK 29.53"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2R02R0008.75M |
|---|---|
| 1st Connector | SMA Jack, Right Angle |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Jack, Right Angle |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-58 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1 GHz |
| Length | 29.53 " |
| Length | 750 mm |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 240.37 | |
| 25 | $ 235.75 | |||
| 50 | $ 231.12 | |||
| 100 | $ 226.49 | |||
| 250 | $ 221.87 | |||
Description
General part information
Q-2R02R0 Series
Cable Assembly Coaxial SMA to SMA RG-58 29.53" (750.00mm)
Documents
Technical documentation and resources
No documents available
