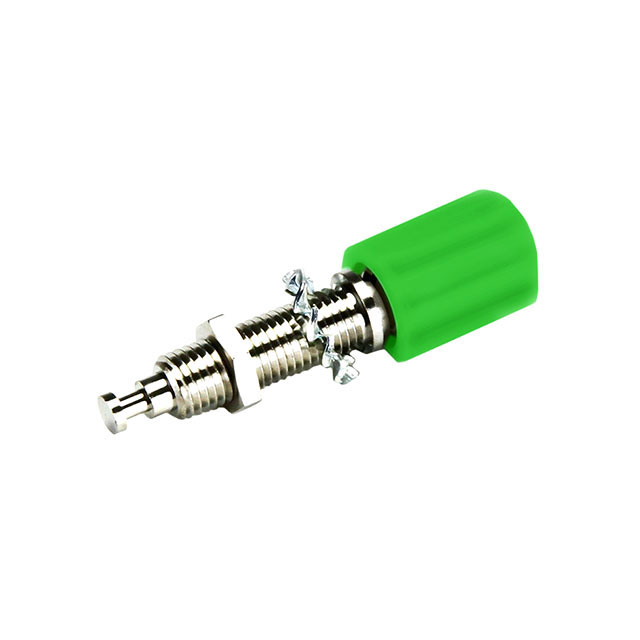

CT2234-5

Active

Cal Test Electronics

CONN BIND POST KNURLED GREEN

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN BIND POST KNURLED GREEN

Technical Specifications

Parameters and characteristics for this part

Specification	CT2234-5

Color	Green
Cross Hole Diameter [diameter]	0.08 "
Cross Hole Diameter [diameter]	2 mm
Current Rating (Amps)	36 A
Head Size [diameter]	0.43 in
Head Size [diameter]	11 mm
Material - Body	Brass
Material - Insulation	Nylon, Polyamide (PA)
Nut Material	Brass
Nut Plating	Nickel
Panel Thickness	0.6 in
Panel Thickness	15.24 mm
Plating - Body	Nickel
Termination	Turret, Threaded
Termination Thread	M6
Type	Standard
Voltage Rating	1200 VDC

Part	Nut Plating	Material - Insulation	Nut Material	Termination	Plating - Body	Material - Body	Panel Thickness	Panel Thickness	Head Size [diameter]	Head Size [diameter]	Voltage Rating	Cross Hole Diameter [diameter]	Cross Hole Diameter [diameter]	Type	Color	Termination Thread	Current Rating (Amps)
Cal Test Electronics CT2234-9	Nickel	Nylon Polyamide (PA)	Brass	Threaded Turret	Nickel	Brass	0.6 in	15.24 mm	0.43 in	11 mm	1200 VDC	0.08 "	2 mm	Standard	White	M6	36 A
Cal Test Electronics CT2234-5	Nickel	Nylon Polyamide (PA)	Brass	Threaded Turret	Nickel	Brass	0.6 in	15.24 mm	0.43 in	11 mm	1200 VDC	0.08 "	2 mm	Standard	Green	M6	36 A
Cal Test Electronics CT2234-6	Nickel	Nylon Polyamide (PA)	Brass	Threaded Turret	Nickel	Brass	0.6 in	15.24 mm	0.43 in	11 mm	1200 VDC	0.08 "	2 mm	Standard	Blue	M6	36 A
Cal Test Electronics CT2234-2	Nickel	Nylon Polyamide (PA)	Brass	Threaded Turret	Nickel	Brass	0.6 in	15.24 mm	0.43 in	11 mm	1200 VDC	0.08 "	2 mm	Standard	Red	M6	36 A
Cal Test Electronics CT2234-4	Nickel	Nylon Polyamide (PA)	Brass	Threaded Turret	Nickel	Brass	0.6 in	15.24 mm	0.43 in	11 mm	1200 VDC	0.08 "	2 mm	Standard	Yellow	M6	36 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 4.45

General part information

Binding Post Connector Standard Knurled Green Nickel

Technical documentation and resources

No documents available
