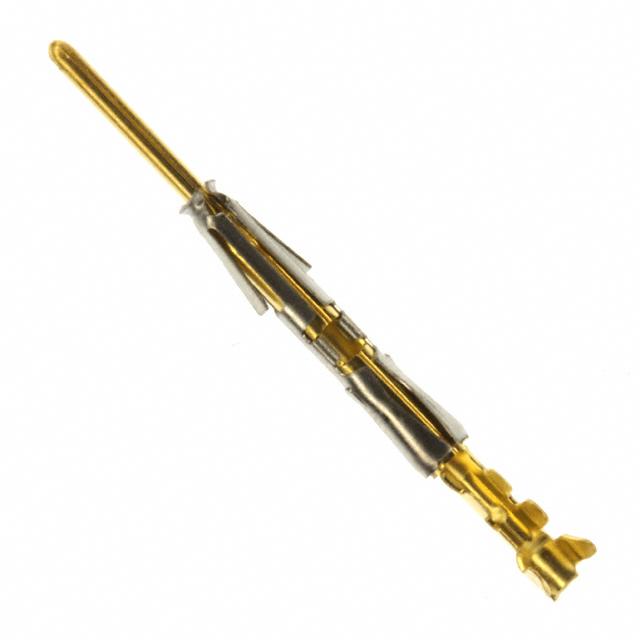

SM24WL-3S26
ActiveSouriau-Sunbank by Eaton
CONTACT PIN 24-26AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM24WL-3S26
ActiveSouriau-Sunbank by Eaton
CONTACT PIN 24-26AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM24WL-3S26 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.75 µm |
| Contact Finish Thickness | 29.5 µin |
| Contact Material | Copper Alloy |
| Contact Size | 20 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Features | Insulation Support |
| Termination Finish | Gold |
| Type | Stamped, Signal |
| Wire Gauge or Range - AWG [Max] | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 24 AWG |
| Wire Gauge or Range - mm² [Max] | 0.25 mm² |
| Wire Gauge or Range - mm² [Min] | 0.12 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.61 | |
| 10 | $ 1.40 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.25 | |||
| 300 | $ 1.13 | |||
| 500 | $ 1.04 | |||
| 1000 | $ 0.89 | |||
| 2500 | $ 0.83 | |||
Description
General part information
SM24WL Series
Pin Contact 24-26 AWG Size 20 Crimp Gold
