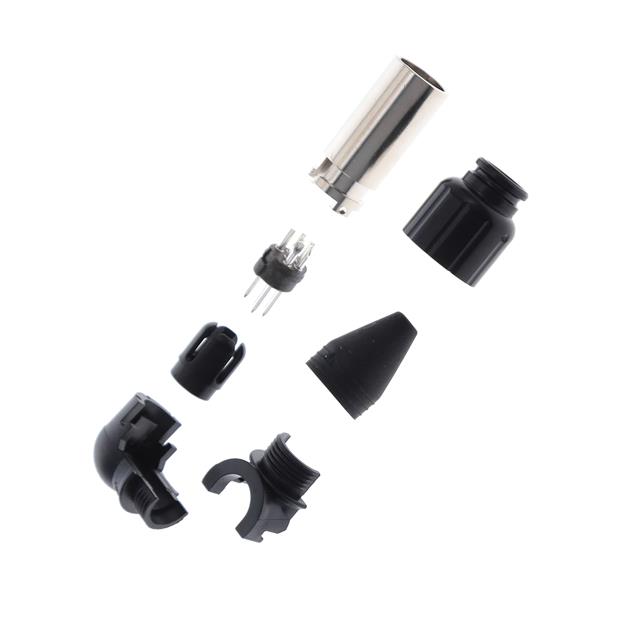

TARA6MX

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 6P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 6P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TARA6MX

Applications	Communication Systems, Medical, Audio, Industrial
Cable Opening [Max] [diameter]	3.81 mm
Cable Opening [Max] [diameter]	0.15 in
Cable Opening [Min] [diameter]	0.12 in
Cable Opening [Min] [diameter]	3.05 mm
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Voltage Rating	125 VAC

Part	Current Rating (Amps)	Number of Positions	Features	Shell Finish	Shell Size - Insert	Shell Material	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Material	Primary Material	Connector Type	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Color	Applications	Mounting Type	Contact Finish - Mating	Orientation
Switchcraft Inc. TARA6MX	1.5 A	6	Backshell Cable Clamp Ground Strain Relief	Nickel	Mini XLR	Copper Alloy	Latch Lock	85 °C	-55 °C	125 VAC	Copper Alloy	Metal	Male Pins Receptacle	0.12 in	3.05 mm	3.81 mm	0.15 in	Black Silver	Audio Communication Systems Industrial Medical	Free Hanging (In-Line) Right Angle	Silver	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder Cup
