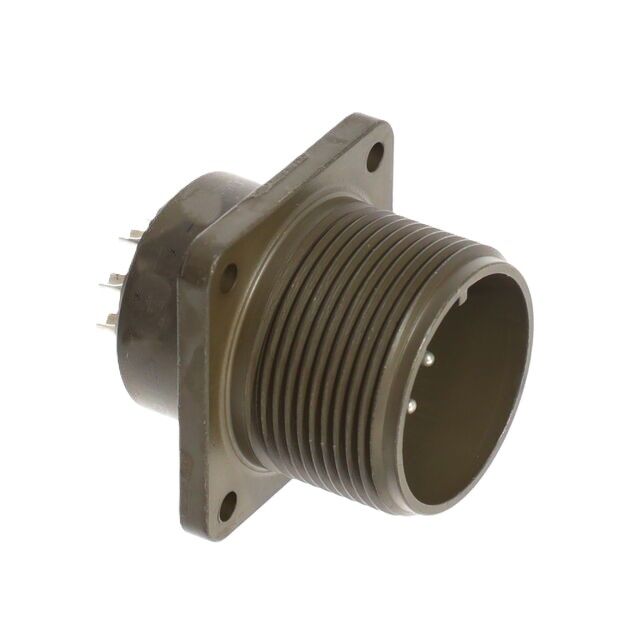

MS27467T9B35SN

Active

Corsair

CONN PLUG FMALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

Corsair

CONN PLUG FMALE 6POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS27467T9B35SN

Applications	Aerospace, Aviation, Military
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Fastening Type	Bayonet Lock
Features	Coupling Nut
Ingress Protection	Environment Resistant
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	9
Shell Size, MIL	A
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

Part	Mounting Type	Connector Type	Features	Shielding	Orientation	Material Flammability Rating	Voltage Rating	Ingress Protection	Fastening Type	Applications	Contact Finish - Mating	Primary Material	Shell Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, MIL	Termination	Color	Number of Positions
Corsair MS27467T9B35SN	Free Hanging (In-Line)	Female Sockets Plug	Coupling Nut	Shielded	N	UL94 V-0	500 VAC	Environment Resistant	Bayonet Lock	Aerospace Aviation Military	Gold	Metal	Aluminum Alloy	9	35	-65 ░C	347 °F	A	Crimp	Olive Drab	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Female Sockets Crimp
