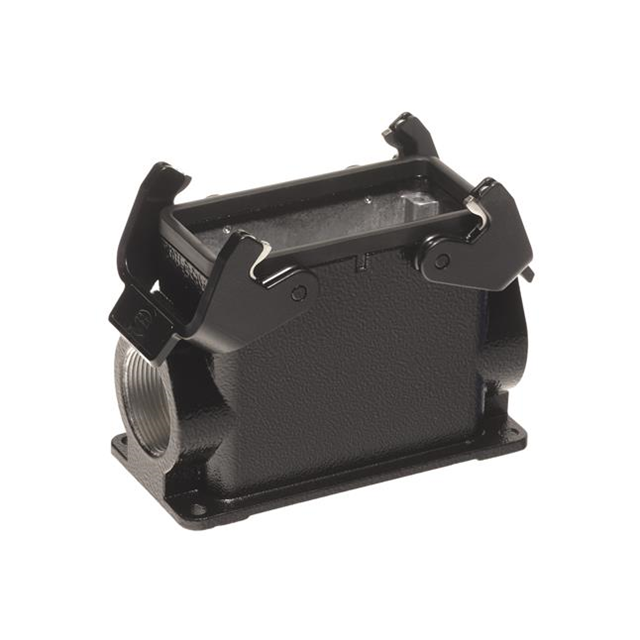

16B SURFACE MOUNT HOUSING, DOUBLE LEVER, HIGH CONSTRUCTION, 1XM32 - BLACK

Search across all available documentation for this part.

Active

HARTING Technology Group

16B SURFACE MOUNT HOUSING, DOUBLE LEVER, HIGH CONSTRUCTION, 1XM32 - BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	19307160232

Connector Type	Base - Box Mount
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	4.606 "
Size / Dimension [x]	117 mm
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	3.181 "
Size / Dimension [z]	80.8 mm
Style	Side Entry
Thread Size	M32

Part	Connector Type	Lock Location	Housing Finish	Ingress Protection	Housing Material	Housing Color	Size	Style	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Features	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
HARTING Technology Group 19307160528
HARTING Technology Group 19307160766	Hood - Coupling	Locking Clip (2) on Hood Top	Powder Coated	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Black	16 B	Bottom Entry Dual	125 °C	-40 °C	M25	Cable to Cable	78.4 mm	3.087 "	93.5 mm	43 mm	3.681 "	1.693 in
HARTING Technology Group 19307160232	Base - Box Mount	Locking Clip (2) on Base Bottom	Powder Coated	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Black	16 B	Side Entry	125 °C	-40 °C	M32		80.8 mm	3.181 "	117 mm	57 mm	4.606 "	2.244 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 67.67
Newark	Each	50	$ 68.14
		100	$ 64.53

General part information

Base - Box Mount Connector Side Entry M32 16B IP65 - Dust Tight, Water Resistant
