2913-6001

Active

Amphenol SV Microwave

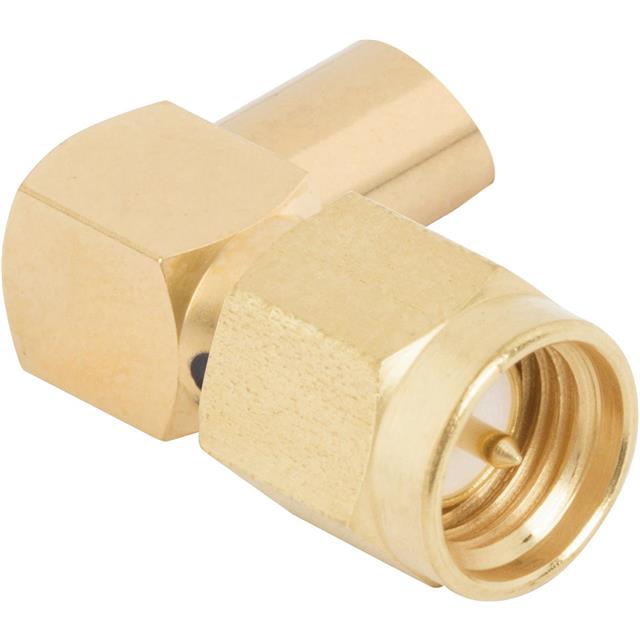

CONN SMA PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMA PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	2913-6001

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-174, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Heat Shrink, 2 pcs - 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Shield Termination	Solder

Part	Mounting Type	Number of Ports	Connector Style	Body Finish	Shield Termination	Includes	Impedance	Body Material	Mating Cycles	Housing Color	Dielectric Material	Frequency - Max [Max]	Cable Group	Center Contact Plating	Center Contact Material	Contact Termination	Connector Type
Amphenol SV Microwave 2913-6001	Free Hanging (In-Line) Right Angle	1	SMA	Gold	Solder	1 Heat Shrink 2 pcs - 1 Connector	50 Ohms	Stainless Steel	500	Gold	Polytetrafluoroethylene (PTFE)	12.4 GHz	316 RG-174	Gold	Brass	Solder	Male Pin Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
